Starter Solenoid: Testing and Inspection
Starter Solenoid Test1. Make sure you have anti-theft codes for the audio system and navigation system. Make sure the ignition switch is OFF.
2. Remove the battery trim.
3. Disconnect the negative cable from the battery.

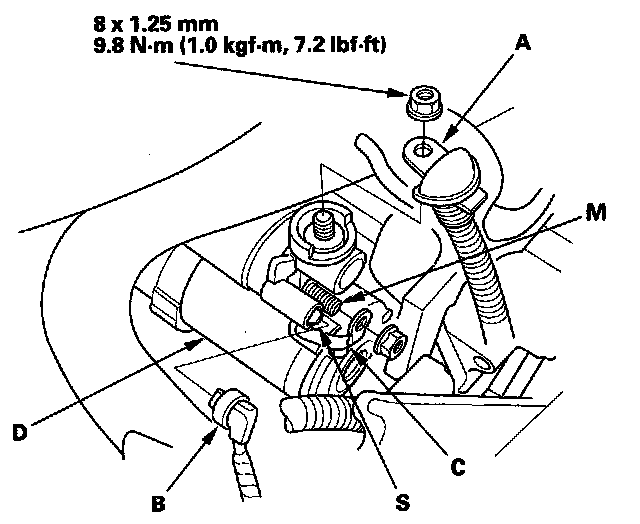

4. Disconnect the starter cable (A), BLK/WHT wire (B), and motor cable (C).
5. Check the hold-in coil for continuity between the S terminal and the armature housing (ground) (D). There should be continuity.
- If there is continuity, go to step 6.
- If there is no continuity, replace the solenoid.
6. Check the pull-in coil for continuity between the S terminal and the M terminal. There should be continuity.
- If there is continuity, the solenoid is OK.
- If there is no continuity, replace the solenoid.
7. Reconnect the starter cable, BLK/WHT wire, and motor cable.
8. Connect the negative cable to the battery.
9. Install the battery trim.
10. Do the steering column position memorization procedure.
11. Enter the anti-theft codes for the audio system and the navigation system.
