Headlight Washer Motor Test/Replacement

Headlight Washer Motor Test/Replacement

Canada models

1. Remove the right inner fender.

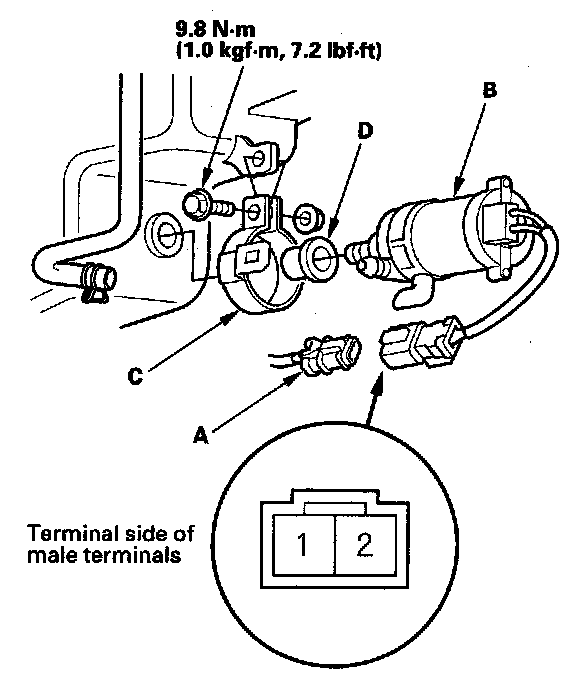

2. Disconnect the 2P connector (A) from the washer motor (B).






3. Test the motor by connecting battery power to the No. 1 terminal and grounding the No. 2 terminal of the headlight washer motor. The motor should run.
- If the motor does not run smoothly, replace it.
- If the motor runs smoothly, but little or no washer fluid is pumped, check for a disconnected or blocked washer hose, or a clogged washer motor outlet.

4. Remove the bolt and bracket (C), then disconnect the headlight washer motor from the washer reservoir.
5. Install the headlight washer motor in the reverse order of removal. If the gasket (D) is damaged, replace it.
