Navigation System: Service and Repair

DVD-ROM Replacement

NOTE: Check any official Honda service website for more service information about the navigation system.

1. Turn the ignition switch to ON (II).

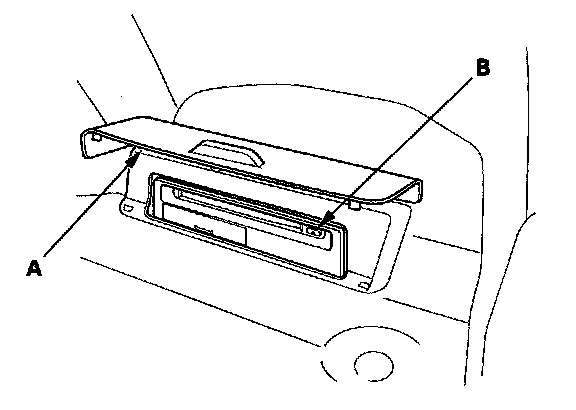

2. Open the cover (A) on the right side of the trunk to gain access to the navigation unit.






3. Press the EJECT button (B), then remove the DVD-ROM.
4. Insert the new DVD-ROM with the white label facing up.
5. Close the front cover. Do not turn the ignition switch to LOCK (0); watch the navigation screen until the data is down loaded to the navigation unit.
6. Do the Map Matching.

NOTE: After servicing, the front cover and PC card slot door must be closed.
