Voice Control Switch Test
Voice Control Switch Test 1.
Remove the driver's airbag assembly.
2.

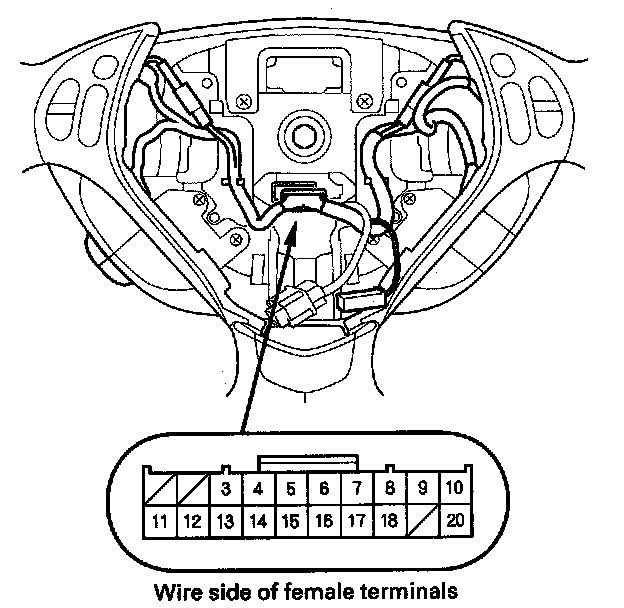

Remove the 20P connector from the cable reel.
3.

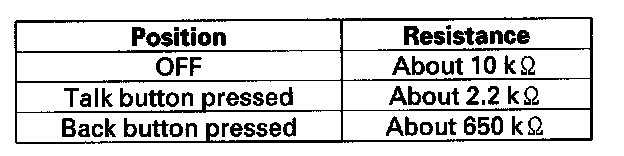

Measure the resistance between the No. 10 and No. 18 terminals in each switch position according to the table.
4.
If the resistance is not as specified, replace the voice control switch.
