Front Bulkhead Cover Replacement
Front Bulkhead Cover ReplacementSpecial Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program.
NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to scratch the front bulkhead and body.

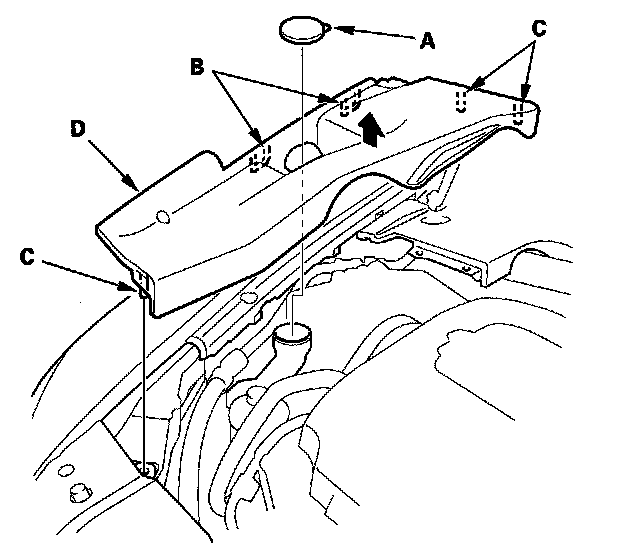

1. Remove the washer reservoir cap (A), and release the hooks (B) and pins (C), then remove the right side engine compartment cover (D).

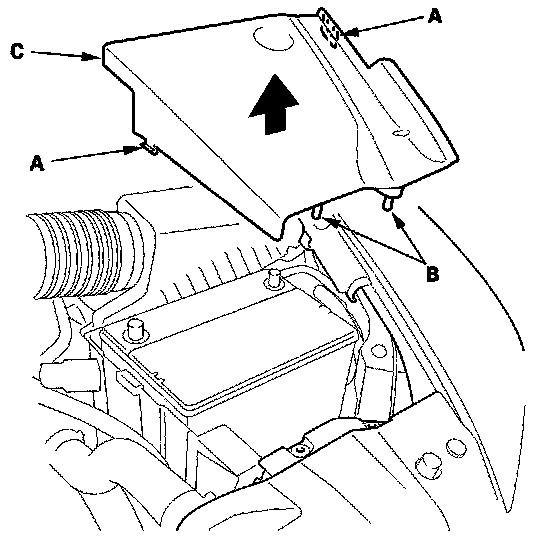

2. Release the hooks (A) and pins (B), then remove the left side engine compartment cover (C).
3. Detach the clips (A, B), then remove the front bulkhead cover (C).
4. Install the front bulkhead cover in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips into place securely.
