Door Lock Actuator Test
Door Lock Actuator TestDriver's Door
1. Remove the driver's door panel.

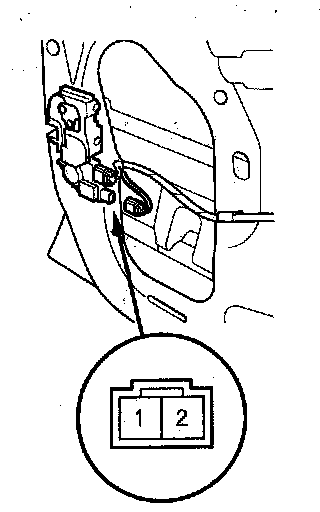

2. Disconnect the 2P connector from the actuator.

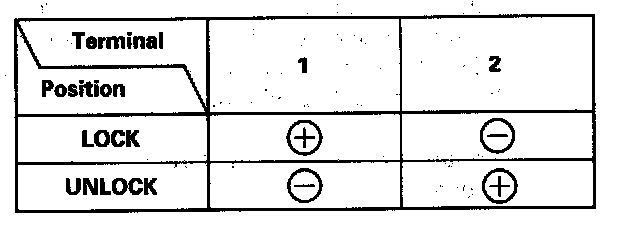

3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
4. If the actuator does not operate as specified, replace it.
Passenger's Door
1. Remove the passenger's door panel.

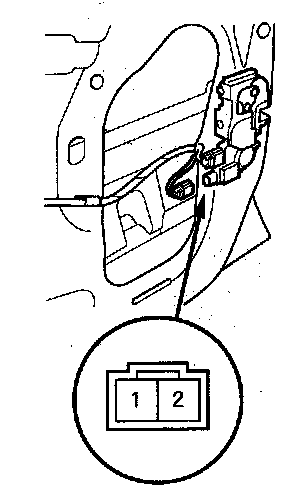

2. Disconnect the 3P connector from the actuator.
NOTE: The illustration shows front passenger's door.
3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
4. If the continuity is not specified, replace the door lock actuator.
