Door Lock Switch Test
Door Lock Switch Test1. Remove the door panel.

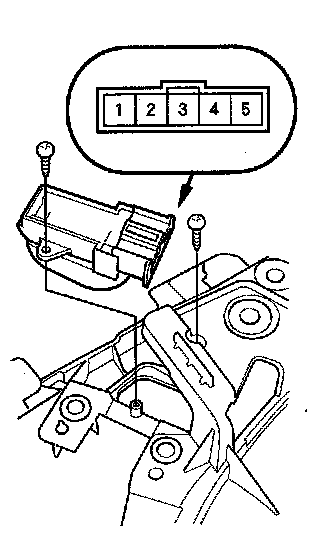

2. Remove the two screws, then remove the door lock switch.
3. Check for continuity between the terminals.
- There should be continuity between the No. 1 and No. 2 terminals when the door lock switch is in the LOCK position.
- There should be no continuity between the No. 1 and No. 2 terminals when the door lock switch is in the neutral position or UNLOCK position.
- There should be continuity between the No. 2 and No. 3 terminals when the door lock switch is in the UNLOCK position.
- There should be no continuity between the No. 2 and No. 3 terminals when the door lock switch is in the neutral position or LOCK position.
- There should be continuity between the No. 5 (+) and No. 4 (-) terminals (LED check).
4. If the continuity is not as specified, replace the switch.
