Power Mirror Replacement

Power Mirror Replacement

1. Lower the door glass fully.
2. Remove the front door sash inner trim.

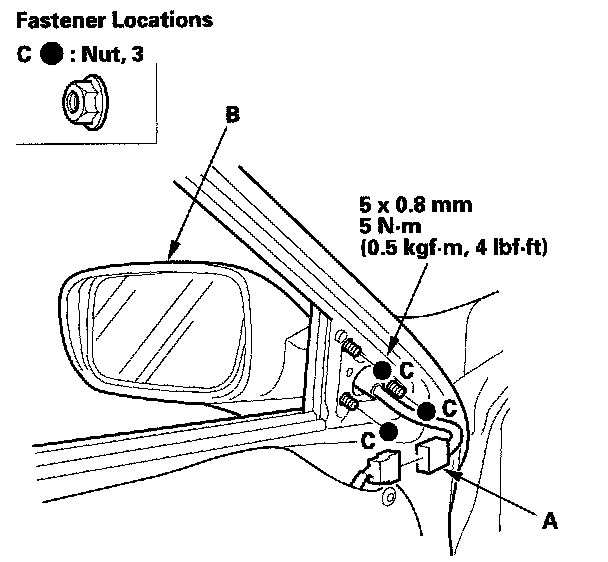

3. Disconnect the connector (A). While holding the mirror (B), remove the nuts (C).

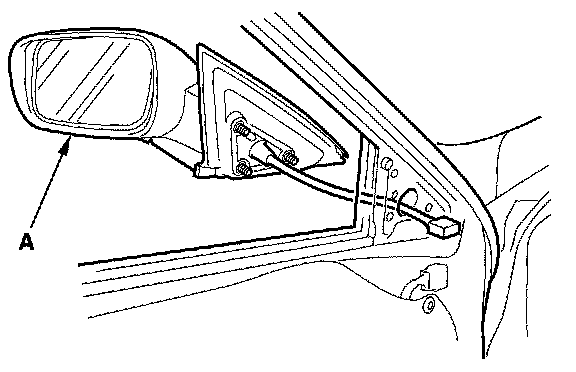

4. Remove the mirror (A). Take care not to scratch the door.
5. Install the mirror in the reverse order of removal, and note these items:
- Make sure the connector is plugged in properly.
- When reinstalling the door panel, make sure the plastic cover is installed properly and sealed around its outside perimeter to seal out water.
