Power Mirror and Mirror Defogger Switch Test/Replacement
Power Mirror and Mirror Defogger Switch Test/Replacement 1.
Remove the driver's dashboard lower cover.
2.

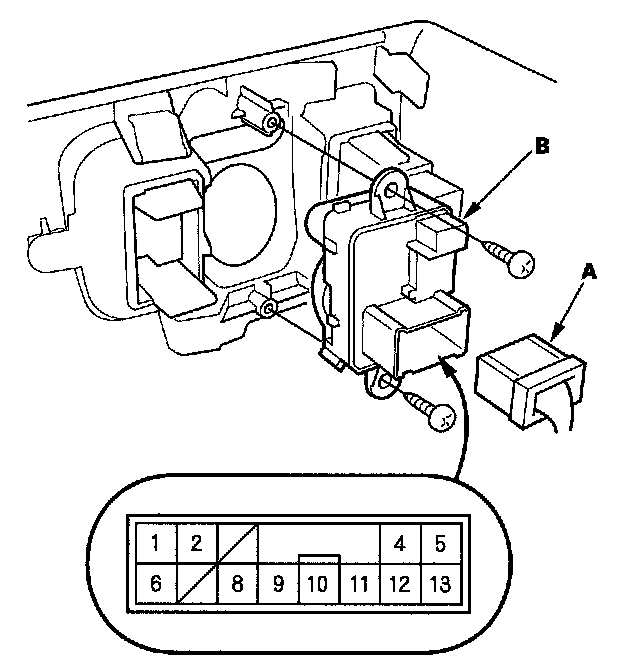

Disconnect the 13P connector (A) from the
power mirror switch (B).
3.

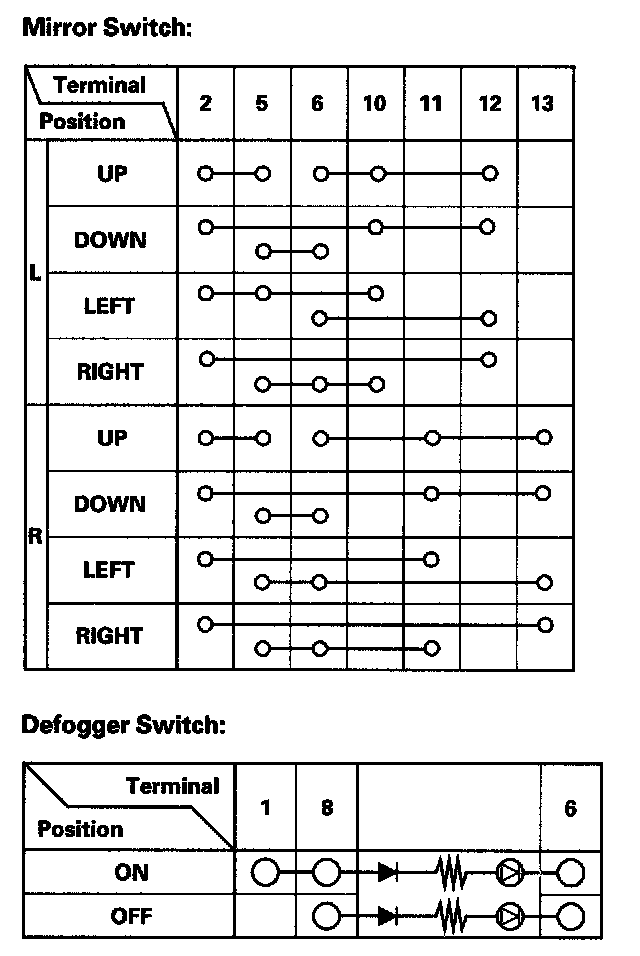

Check for continuity between the terminals in each switch position according to the table.
4.
If the continuity is not as specified, remove the screws and replace the
power mirror switch.
