Motor Test
Motor Test 1.
Remove the driver's seat.
2.

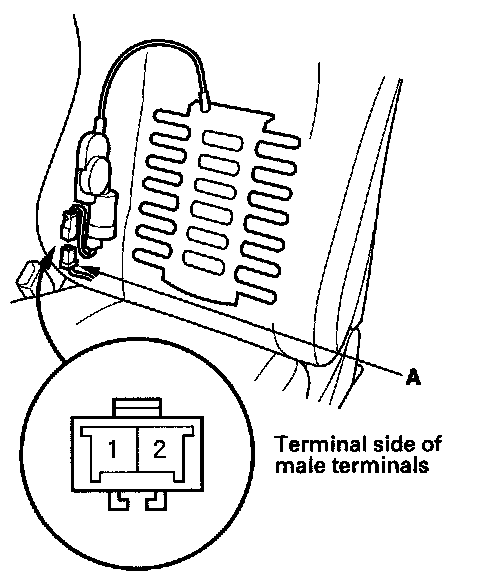

Disconnect the 2P connector (A) from the lumbar support motor.
3.

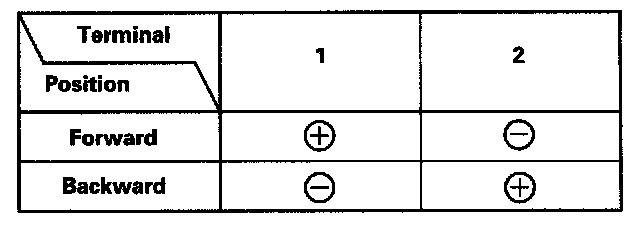

Test each motor by applying battery voltage and body ground to the terminals.
4.
If the motor does not run or fails to run smoothly, replace it.
