Fuel Pipe Protector Replacement
Fuel Pipe Protector ReplacementNOTE: -
Put on gloves protect your hands.
-
Take care not to scratch the body.
1.

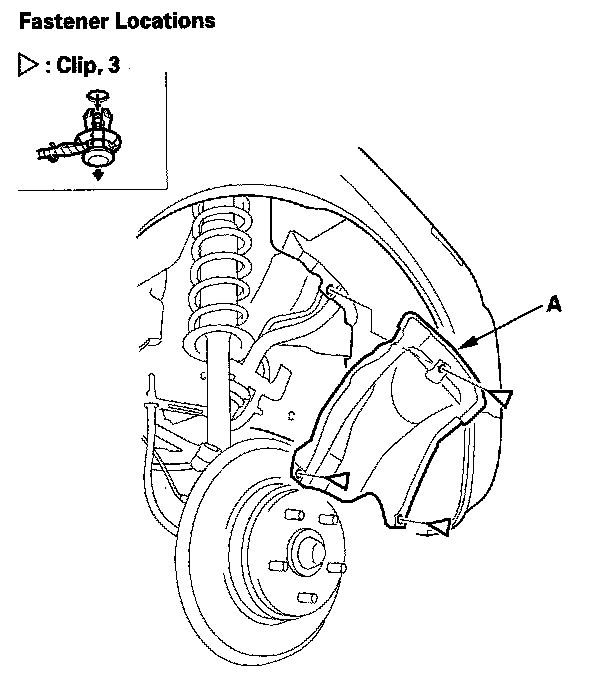

Remove the clips, then remove the fuel pipe protector (A).
2.
Install the protector in the reverse order of removal, and note these items:
-
Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
-
Push the clips into place securely.
