Brake Pad: Specifications

Brake pad

Brake pad thickness:
Standard:

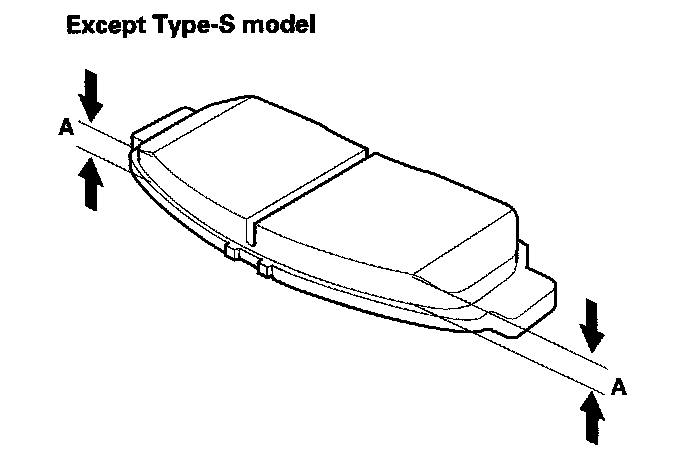

Except Type-S model 10.3 - 11.0 mm (0.41 - 0.43 in.)

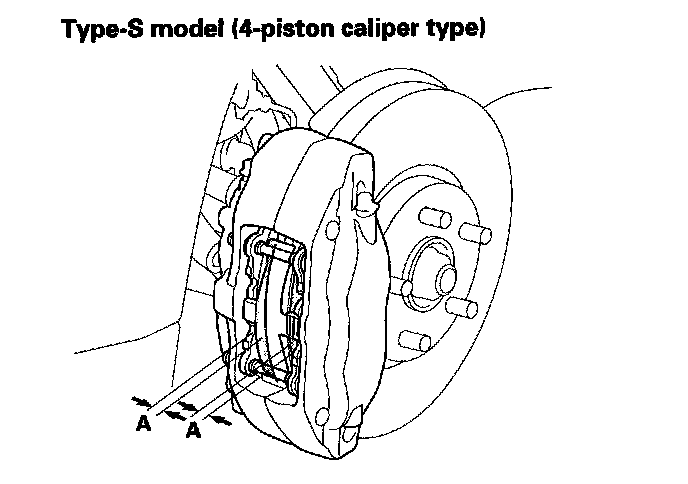

Type-S model (4-piston caliper type) 8.8 - 10.0 mm (0.35 - 0.39 in.)
Service limit 1.6 mm (0.06 in.)
