General Specifications

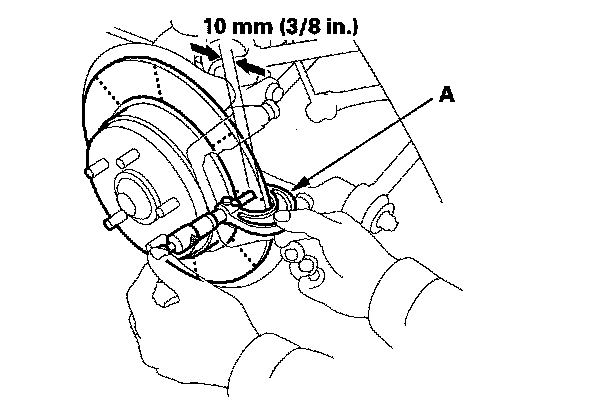

Front brake rotor/discBrake disc thickness:
Except Type-S model:
Standard 27.9 - 28.1 mm (1.10 - 1.11 in.)
Max. refinishing limit 26.0 mm (1.02 in.)
Type-S model (4-piston caliper type):
Standard 24.9 - 25.1 mm (0.98 - 0.99 in.)
Max. refinishing limit 23.0 mm (0.91 in.)
Brake disc parallelism 0.015 mm (0.0006 in.) max.
Brake disc runout:
Service limit 0.04 mm (0.0016 in.)
This is the maximum allowable difference between the thickness measurements.
Rear brake rotor/disc/drum

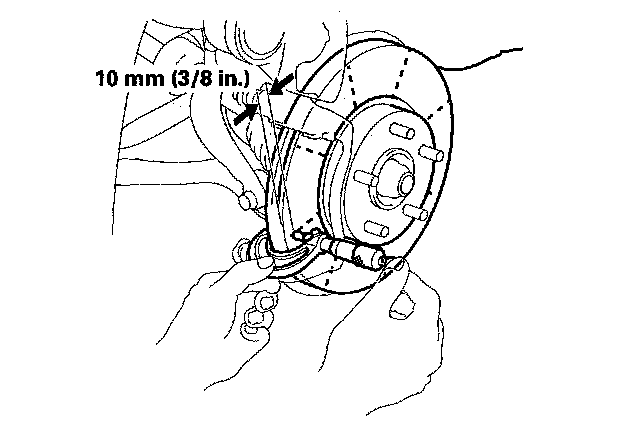

Brake disc/drum thickness:
Standard 8.9 - 9.1 mm (0.350 - 0.358 in.)
Max. refinishing limit 7.5 mm (0.30 in.)
Brake disc/drum parallelism 0.015 mm (0.0006 in.) max.
Brake disc/drum runout:
Service limit 0.04 mm (0.0016 in.)
This is the maximum allowable difference between the thickness measurements.
