Clutch Switch: Testing and Inspection

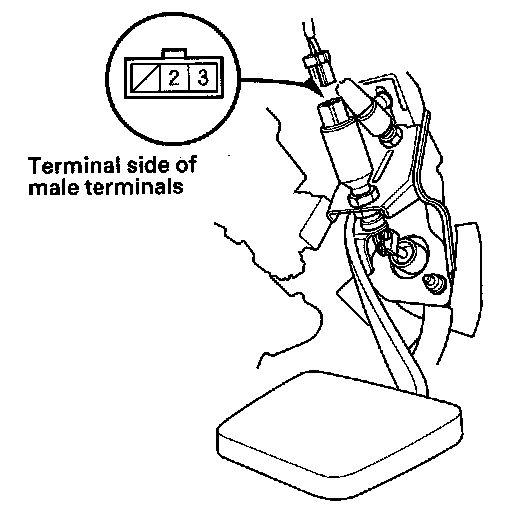

Clutch Pedal Position Switch TestM/T model 1.
Disconnect the 3P connector from the clutch pedal position switch.
2.
Remove the clutch pedal position switch.
3.

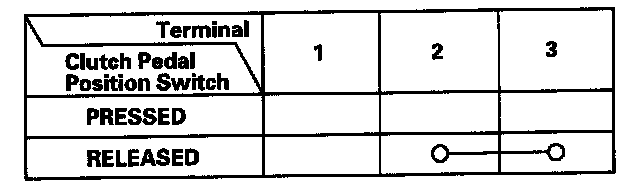

Check for continuity between the terminals according to the table.
-
If the continuity is not as specified, replace the clutch pedal position switch.
-
If OK, install the clutch pedal position switch and adjust the pedal height.
