View 151-175: 171

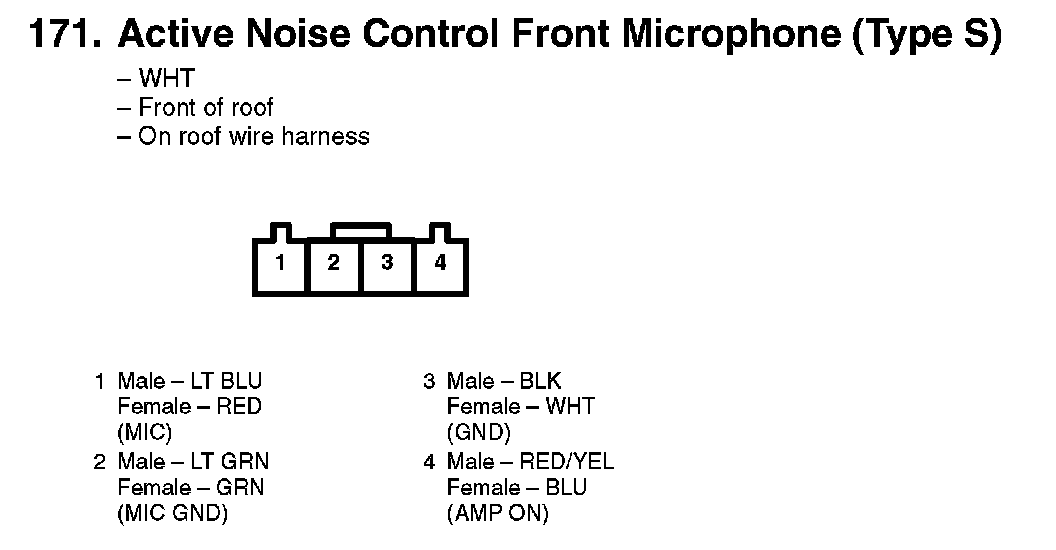

171. Active Noise Control Front Microphone (Type S):

186. Active Noise Control Rear Microphone (Type S):

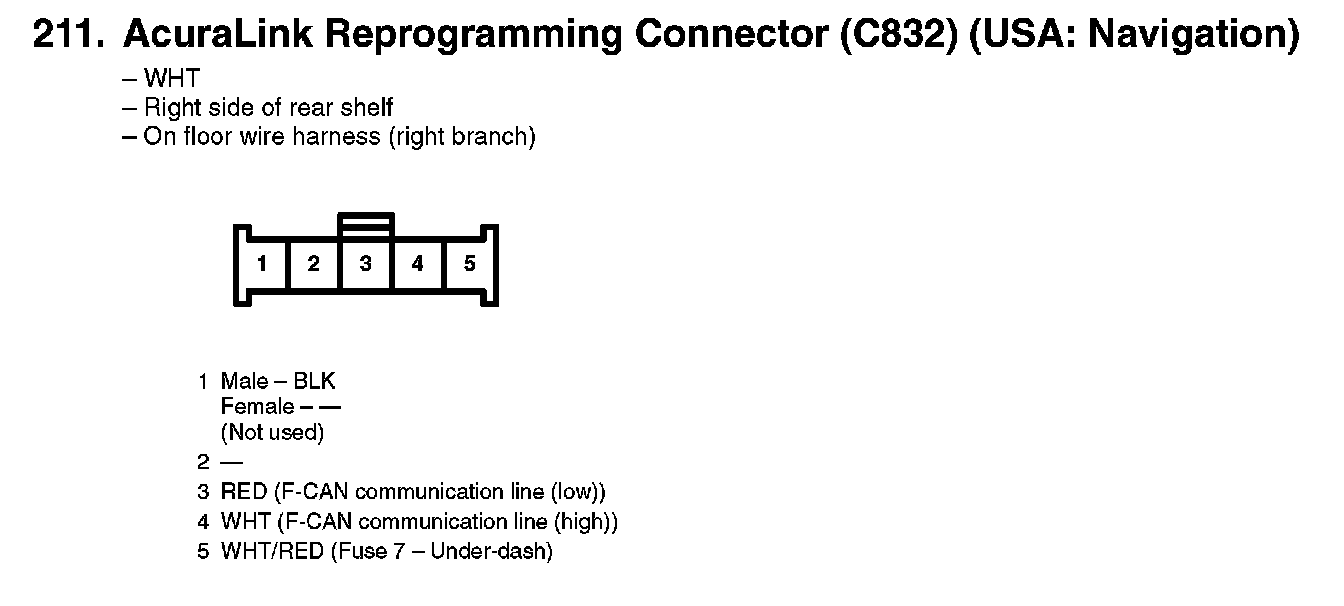

211. AcuraLink Reprogramming Connector (C832) (USA: Navigation):

243. Audio-HVAC Sub Display Unit (Navigation):

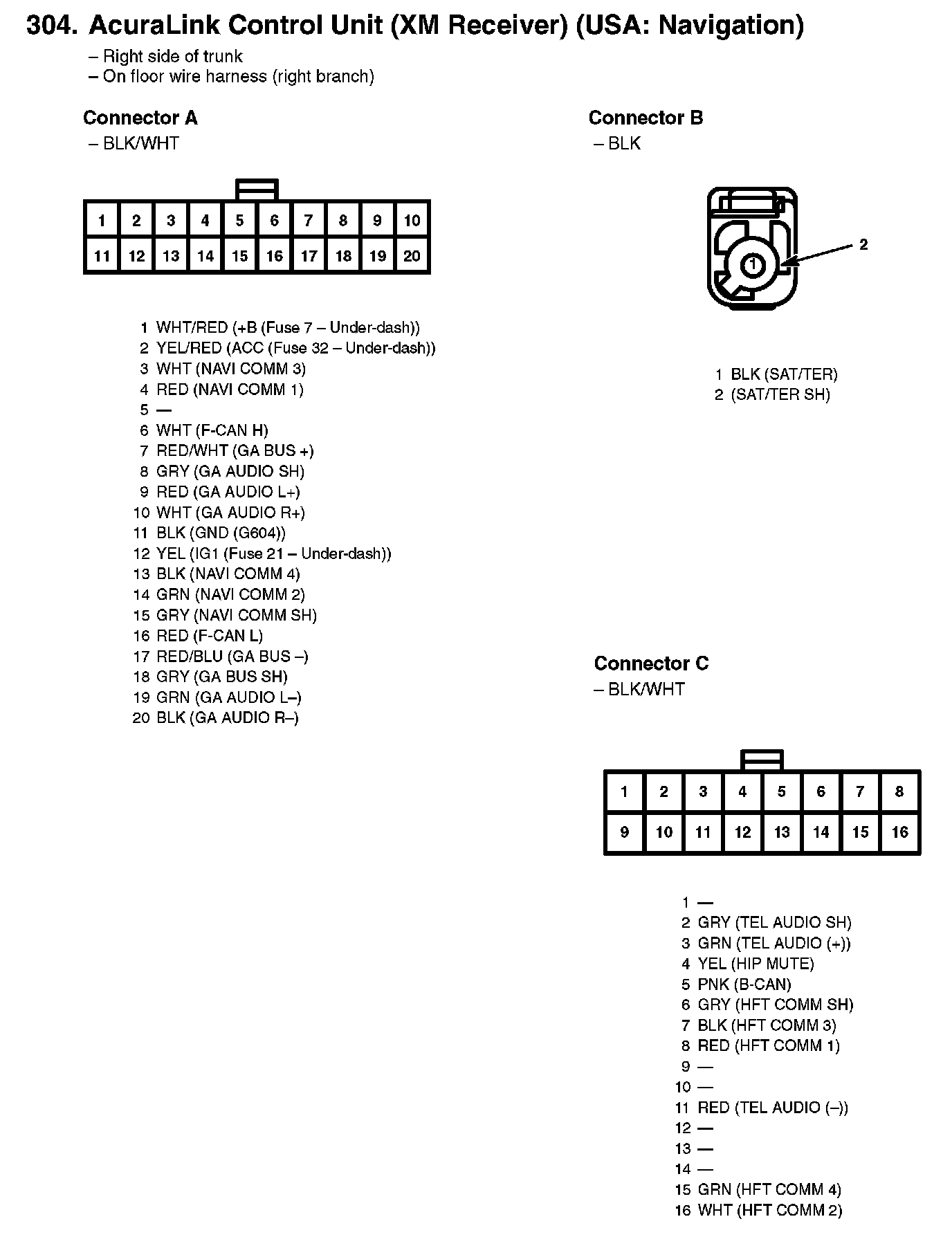

304. AcuraLink Control Unit (XM Receiver) (USA: Navigation):

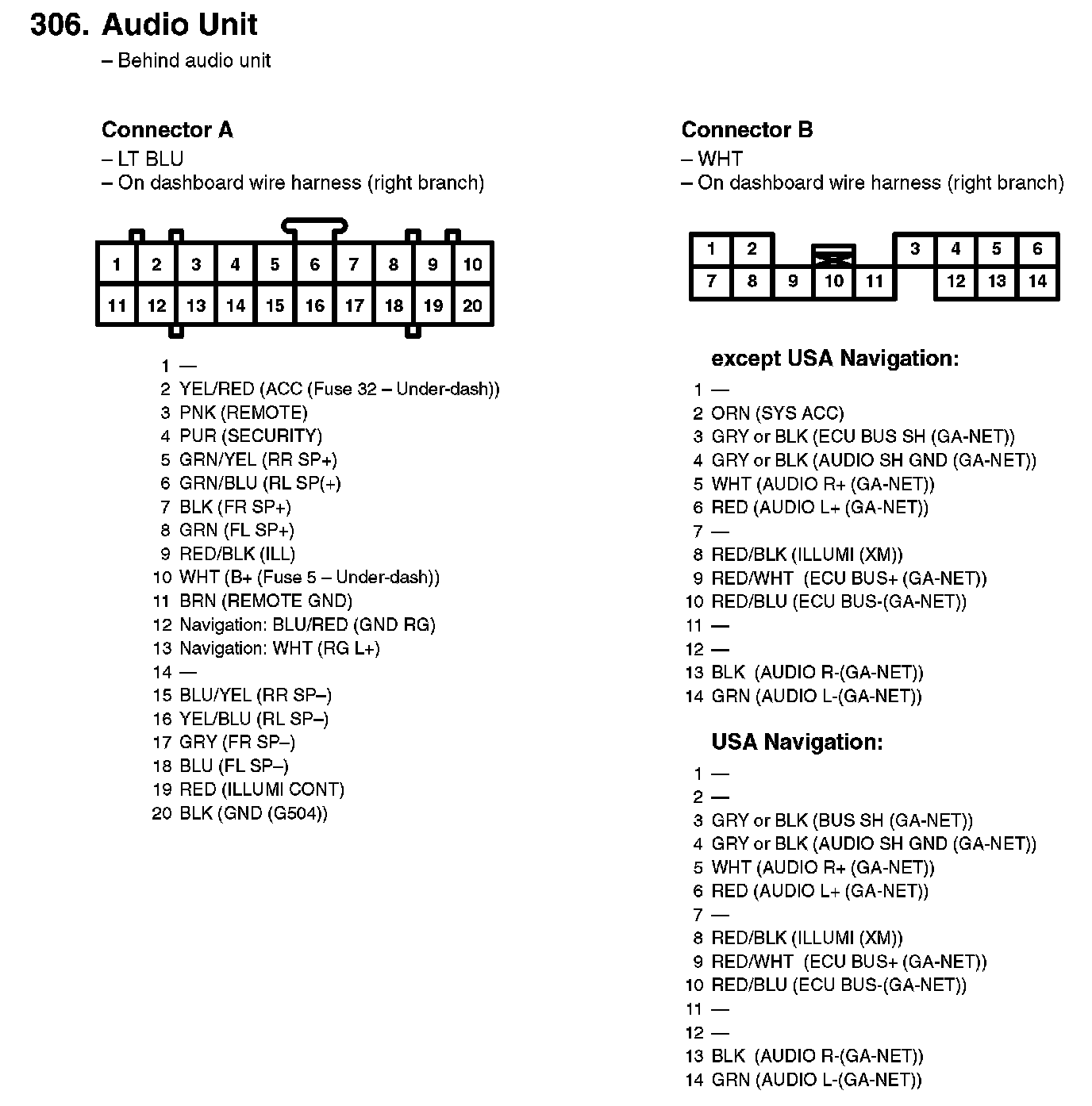

306. Audio Unit:

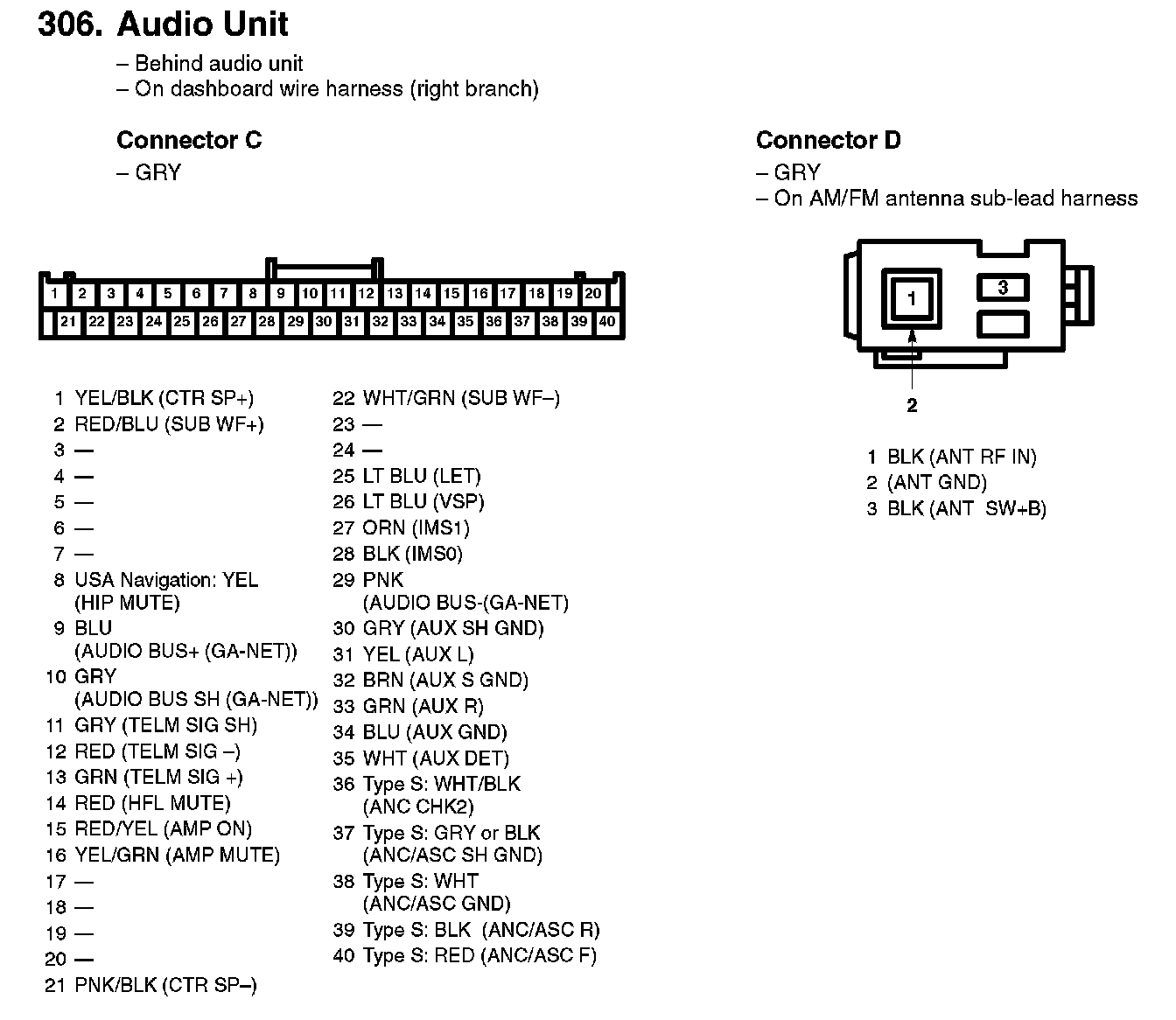

306. Audio Unit:

329. XM Receiver (except USA Navigation):

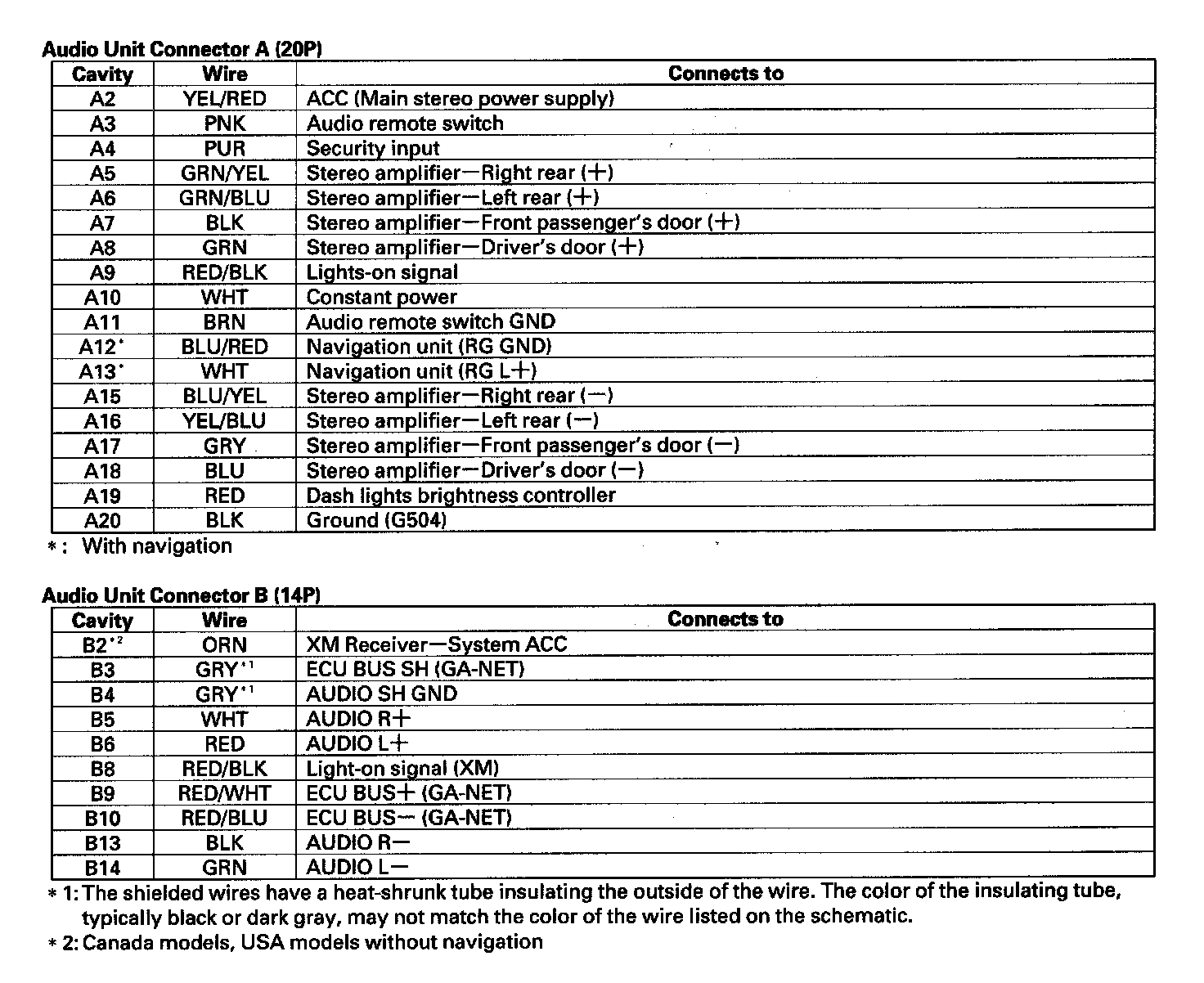

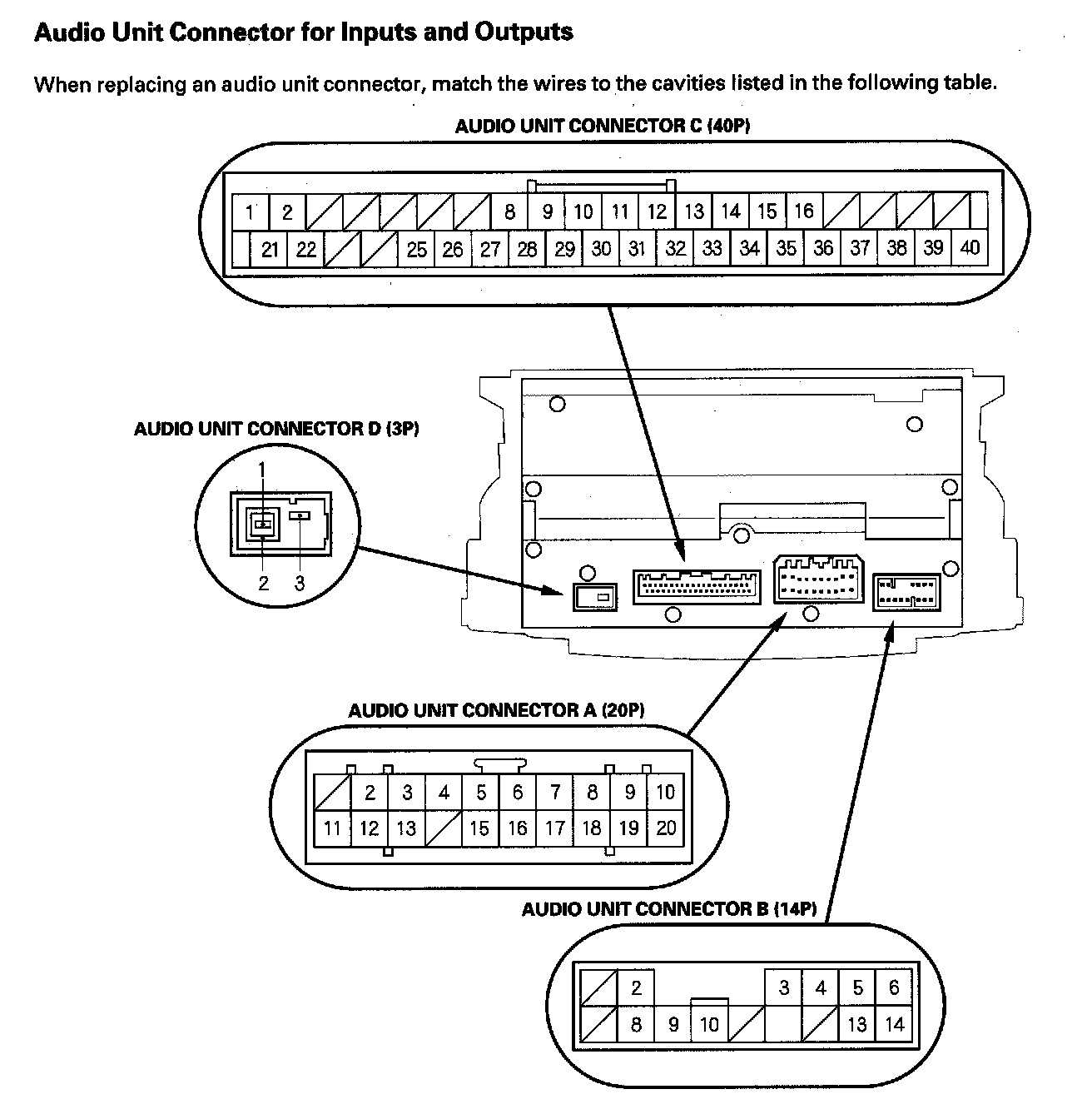

Audio Unit Connector For Inputs And Outputs Part 1:

Audio Unit Connector For Inputs And Outputs Part 2:

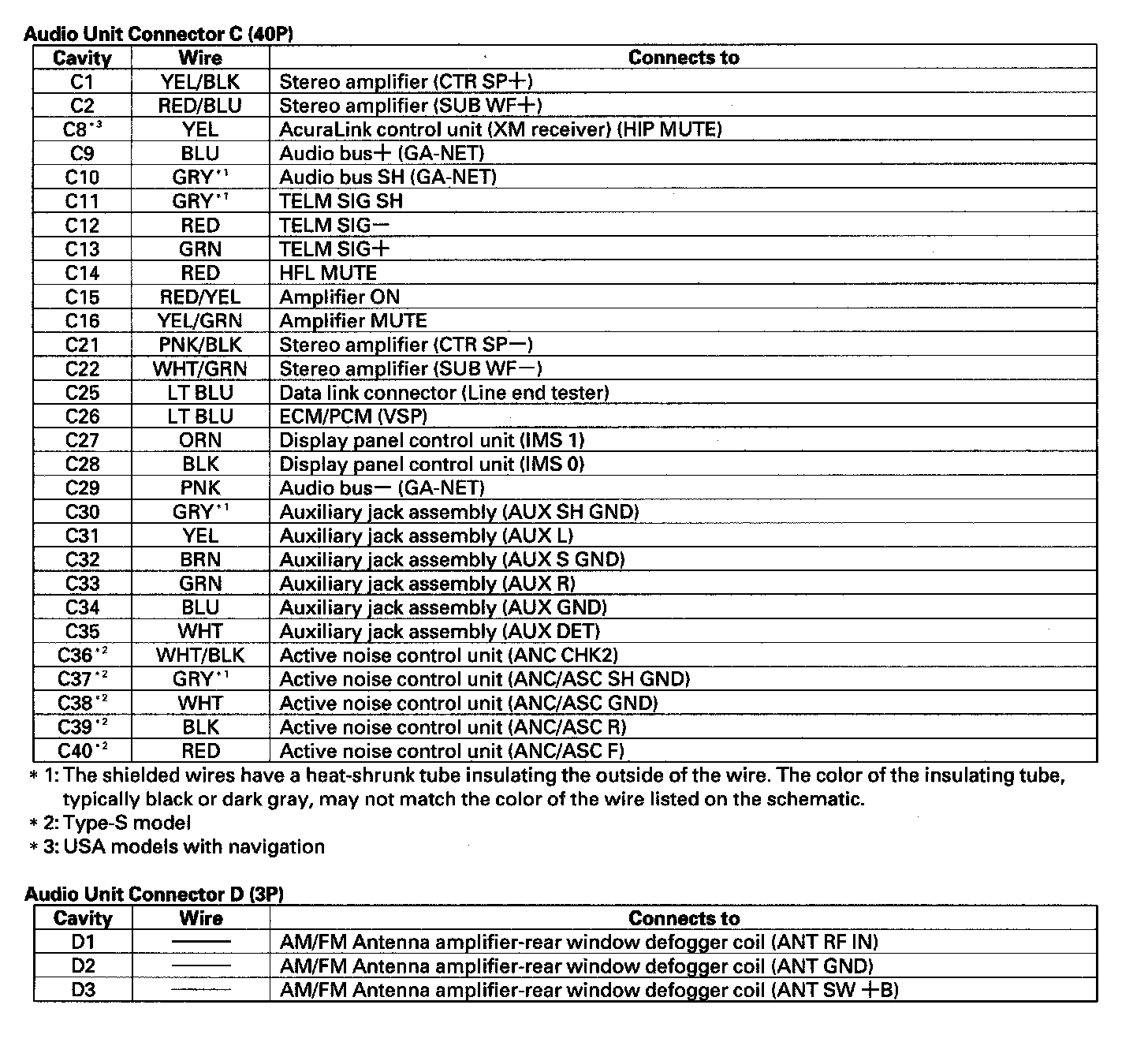

Audio Unit Connector For Inputs And Outputs Part 3:

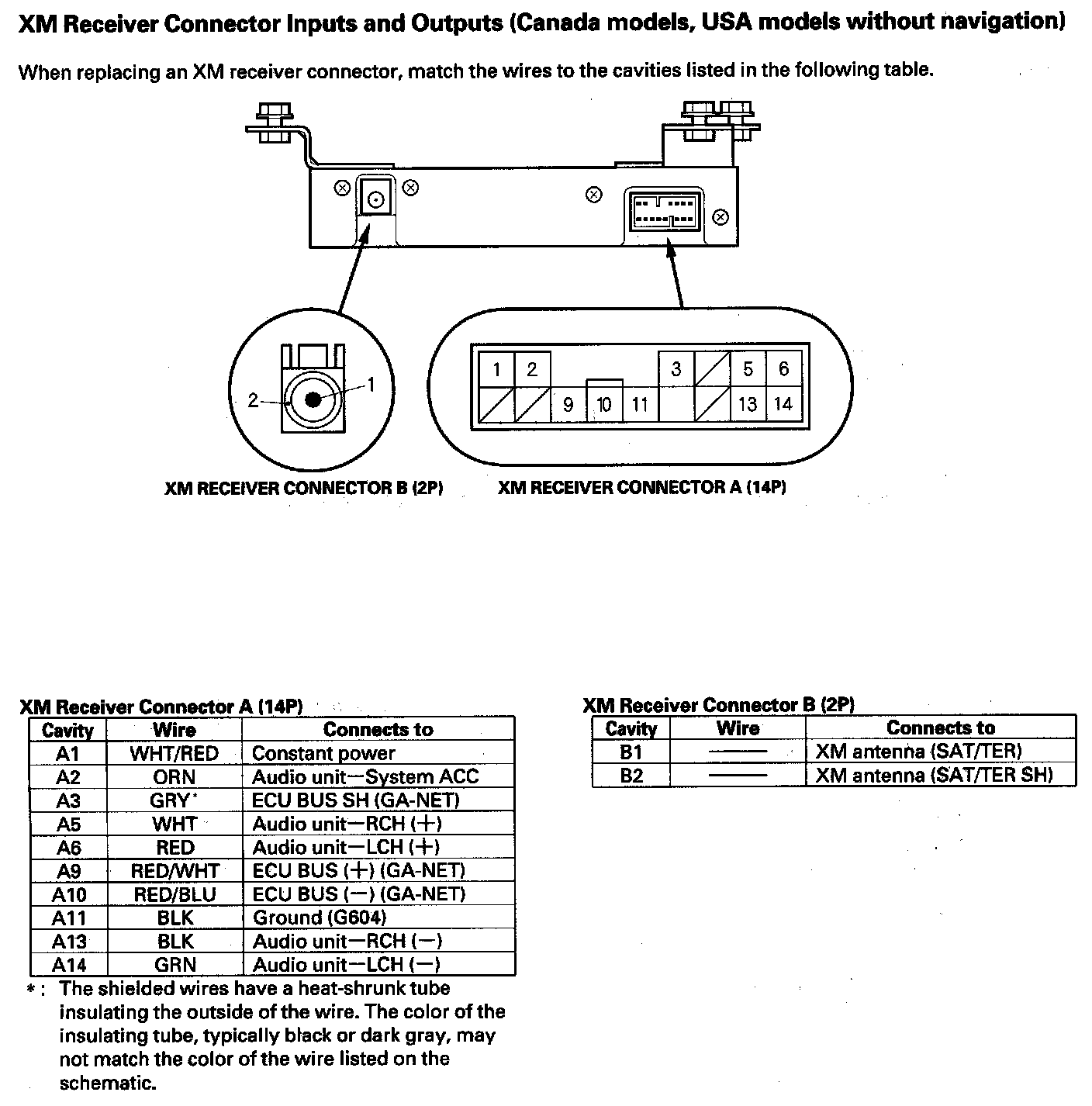

XM Receiver Connector Inputs And Outputs (Canada Models, USA Models Without Navigation):

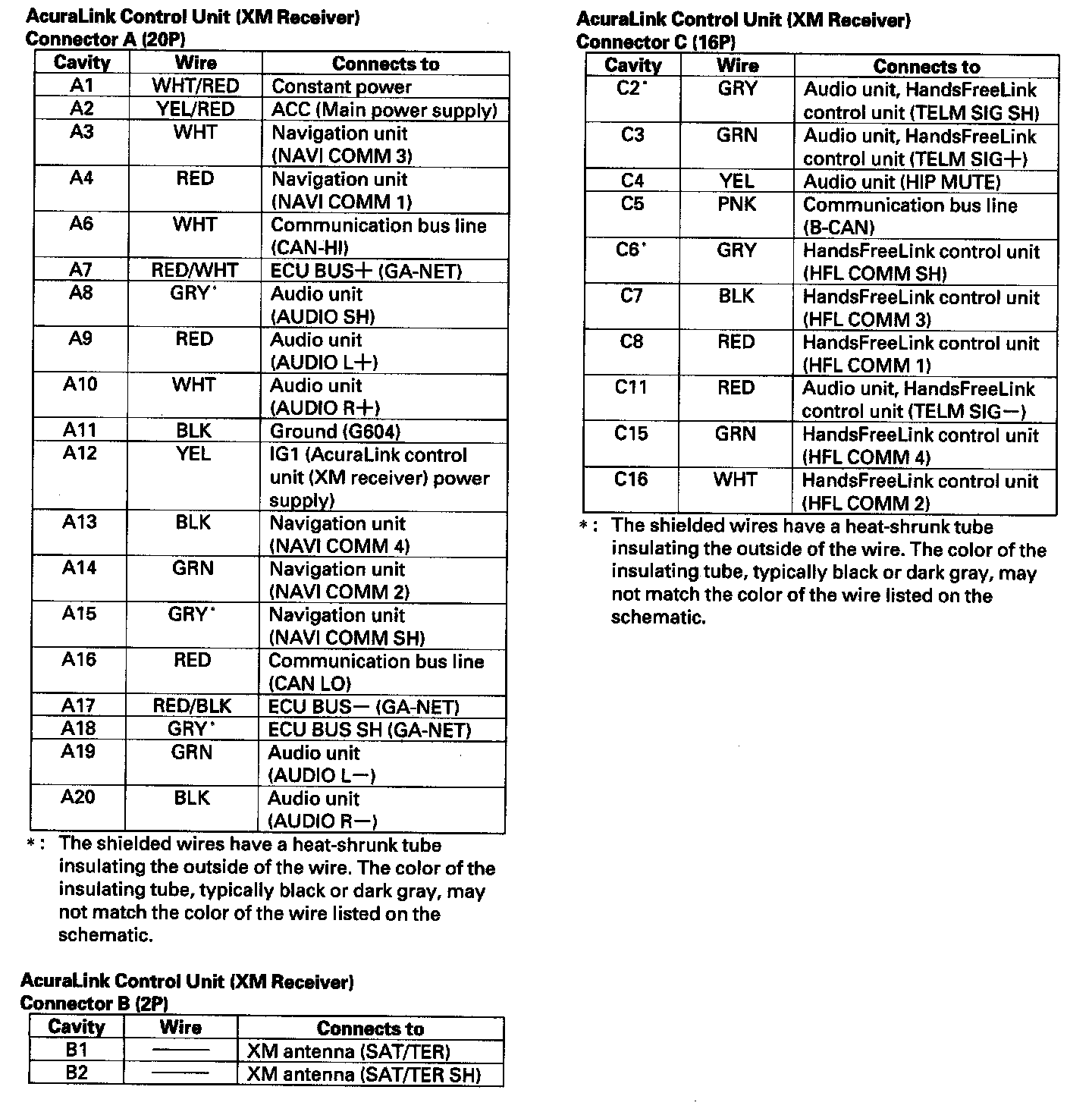

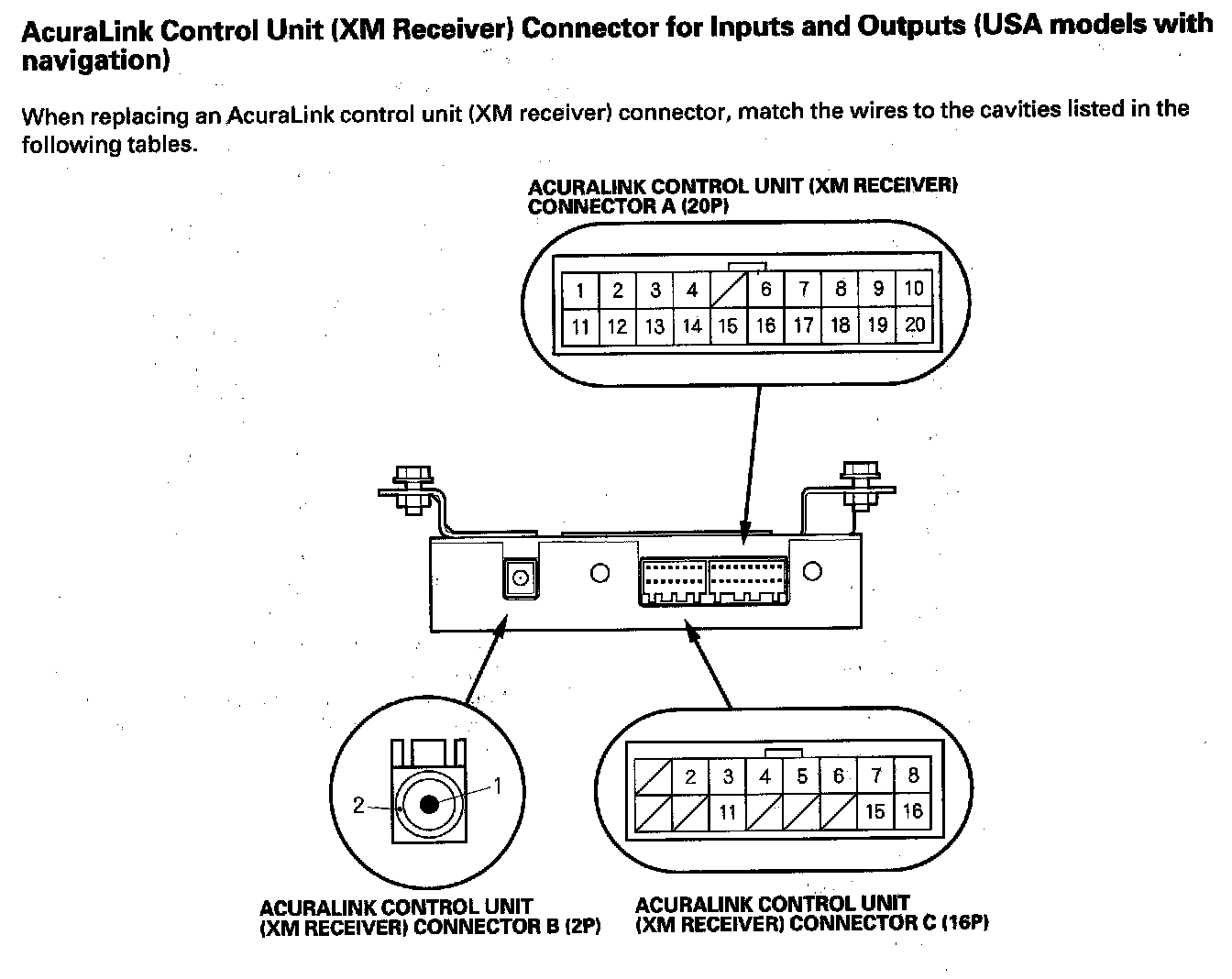

AcuraLink Control Unit (XM Receiver) Connector For Inputs And Outputs (USA Models With Navigation) Part 1:

AcuraLink Control Unit (XM Receiver) Connector For Inputs And Outputs (USA Models With Navigation) Part 2:

Audio-HVAC Subdisplay Unit Connector Inputs and Outputs (With navigation):

Audio-HVAC Subdisplay Unit Inputs And Outputs For 10P Connector:
