Cabin Temperature Sensor / Switch: Service and Repair
In-car Temperature Sensor Replacement 1.
Remove the driver's dashboard lower cover.
2.

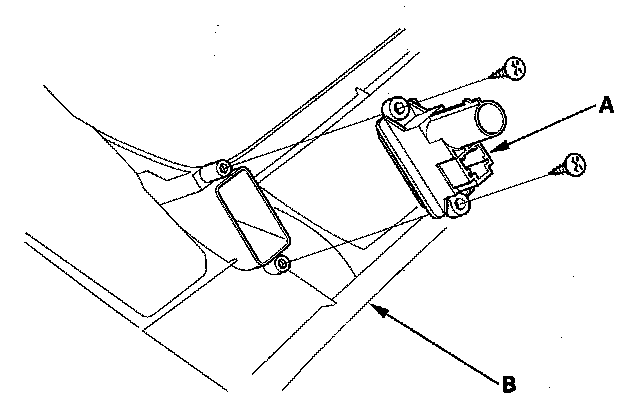

Remove the self-tapping screws and the in-car temperature sensor (A) from the driver's dashboard lower cover (B).
3.
Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
