Audio-HVAC Subdisplay Unit Removal/Installation
Audio-HVAC Subdisplay Unit Removal/InstallationWith Navigation 1.
Remove the dashboard center vent.
2.

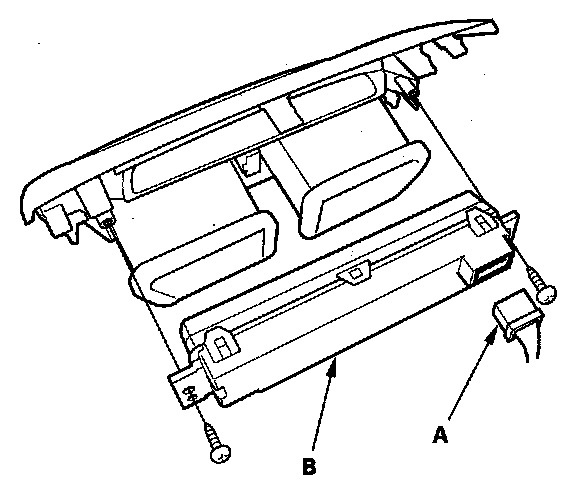

Disconnect the 10P connector (A) from the audio-HVAC subdisplay unit (B).
3.
Remove the two screw and audio-HVAC subdisplay unit.
4.
Install the audio-HVAC subdisplay unit in the reverse order of removal.
