Evaporator Temperature Sensor / Switch: Service and Repair

Evaporator Temperature Sensor Replacement

1. Remove the passenger's dashboard undercover.

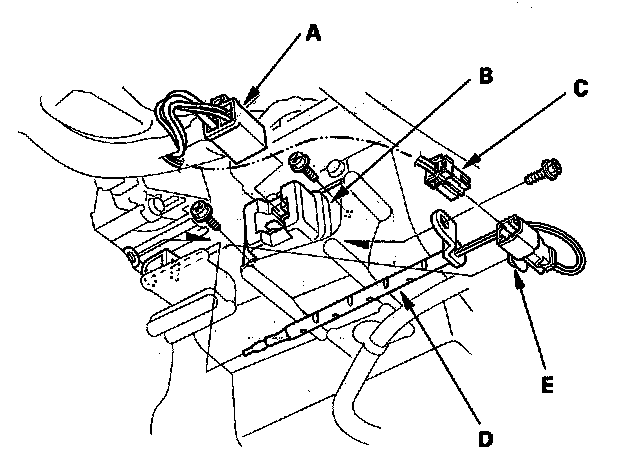

2. Disconnect the 4P connector (A) from the power transistor (B) then remove the self-tapping screws and carefully pull out the power transistor. Disconnect the 2P connector (C) from the evaporator temperature sensor (D), then remove the connector clip (E). Remove the self-tapping screw, and carefully pull out the evaporator temperature.






3. Install in the reverse order of removal.
