In-Car Temperature Sensor Test

In-car Temperature Sensor Test

1. Remove the in-car temperature sensor.
2. Check for a change in resistance by heating the sensor with a hair drier or cooling the sensor in a cool cup of water.

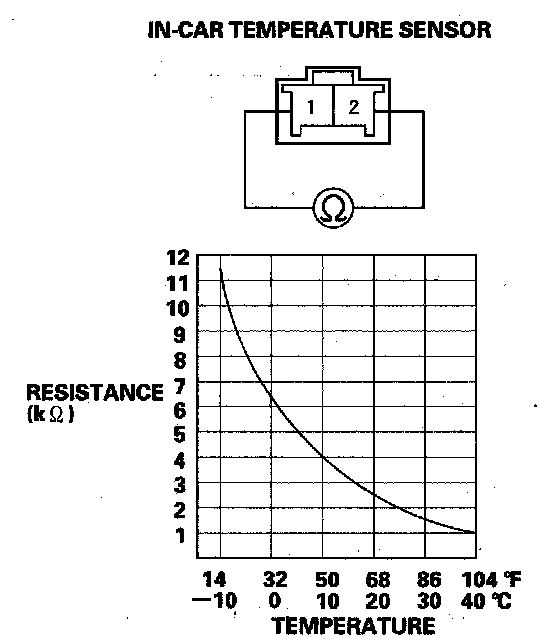

3. Compare the resistance reading between the No. 1 and No. 2 terminals of the in-car temperature sensor with the specifications shown in the graph; the resistance should be within the specifications.






4. If the resistance is not as specified, replace the in-car temperature sensor.
