Footwell Light Test/Replacement
Footwell Light Test/Replacement 1.

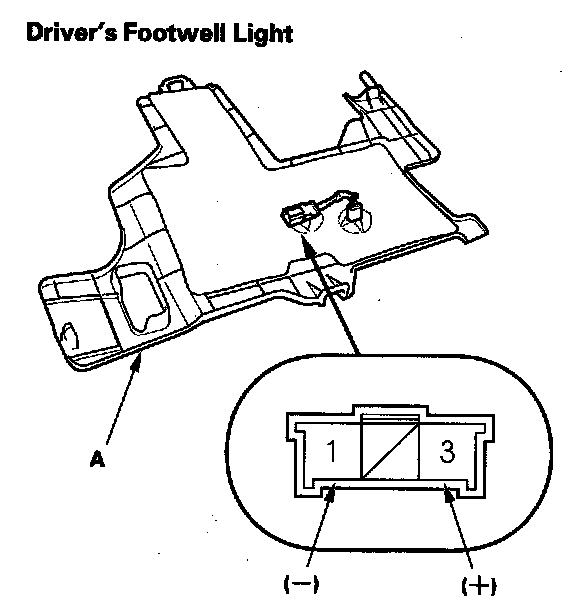

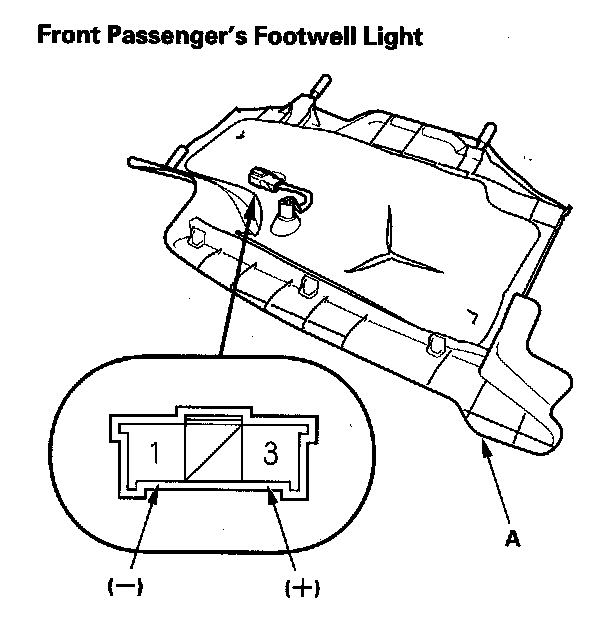

Remove the dashboard lower cover (A).
2.
Disconnect the 3P connector.
3.
The LED should come on when power is connected to the No. 3 terminal and ground is connected to No. 1 terminal.
4.
If the LED does not come on, replace the footwell light.
