Headlamp Control Module: Adjustments

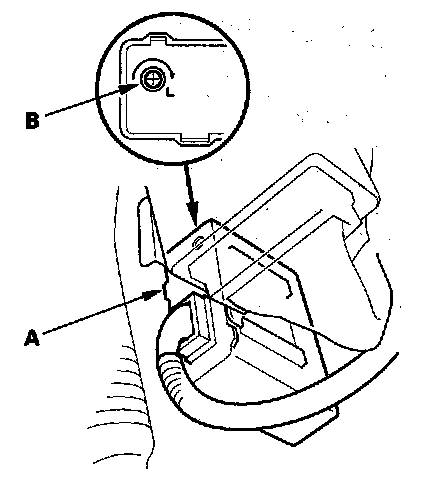

Automatic Lighting Control Unit AdjustmentThe automatic lighting control unit (A) sensitivity can be adjusted to turn on the headlights at different levels of light. Adjust the sensitivity by turning the adjuster (B), located on the bottom of the
control unit, with a screwdriver.
