Front Individual Map Light Replacement

Front Individual Map Light Replacement

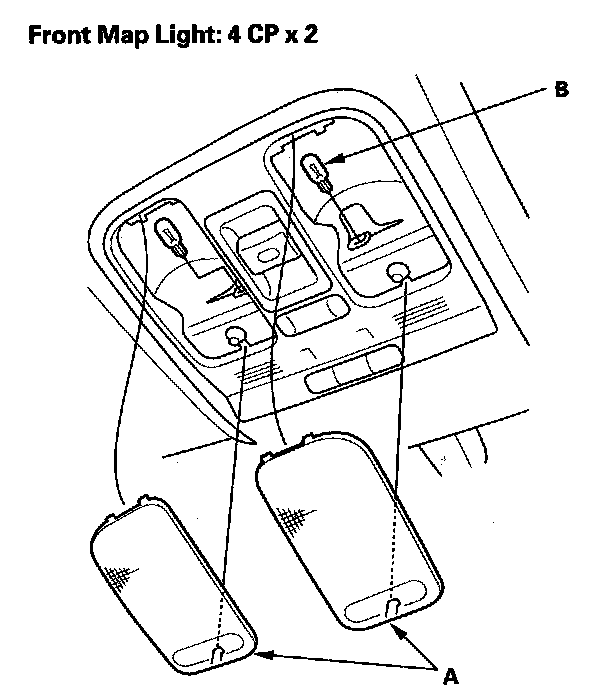

1. Carefully pry off the lens (A) with a small screwdriver.






2. Check the bulb(s) (B). If the bulb is OK, but there is a malfunction, check the interior light switch.
