Rear Map Light Replacement

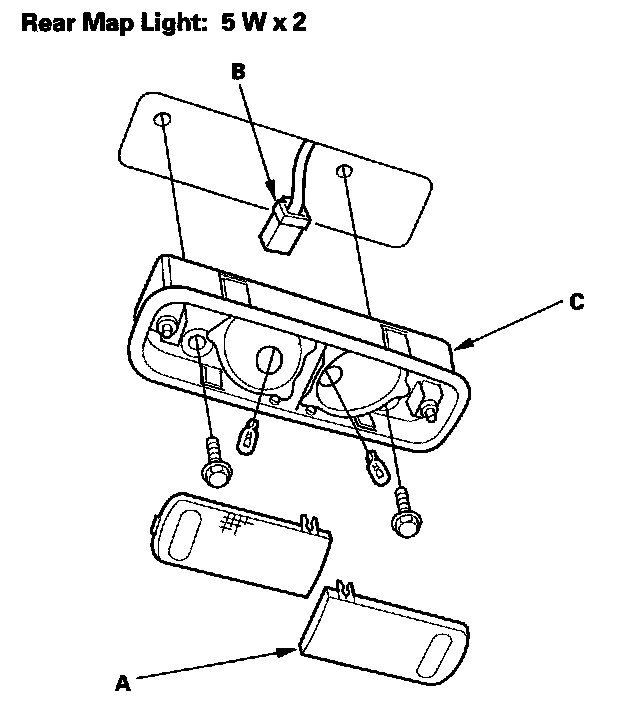

Rear Map Light Replacement 1.
Carefully pry off the lens (A) with a small screwdriver.
2.
Remove the two mounting bolts.
3.
Disconnect the 3P connector (B) from the rear
map light (C).
4.
Install in the reverse order of removal.
