Marker Lamp: Service and Repair

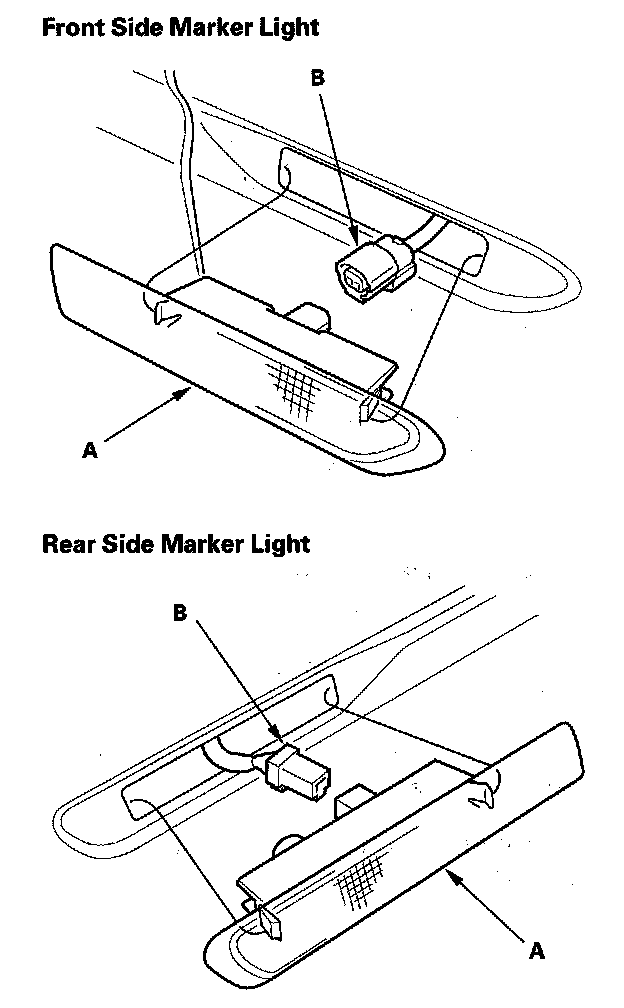

Side Marker Light Replacement 1.
Remove the front inner fender and front fender fairing, or the trunk side trim panel*.
2.
Carefully push out the light (A) from behind the fender or trunk*.
*: Rear Side Marker Light
3.
Disconnect the 2P(*1) or 3P(*2) connector (B) from the light.
*1: TL model
*2: TYPE-S model
4.
Install in the reverse order of removal.
