Combination Switch: Service and Repair

Combination Light Switch Test/Replacement

1. Remove the dashboard lower cover.
2. Remove the steering column covers.

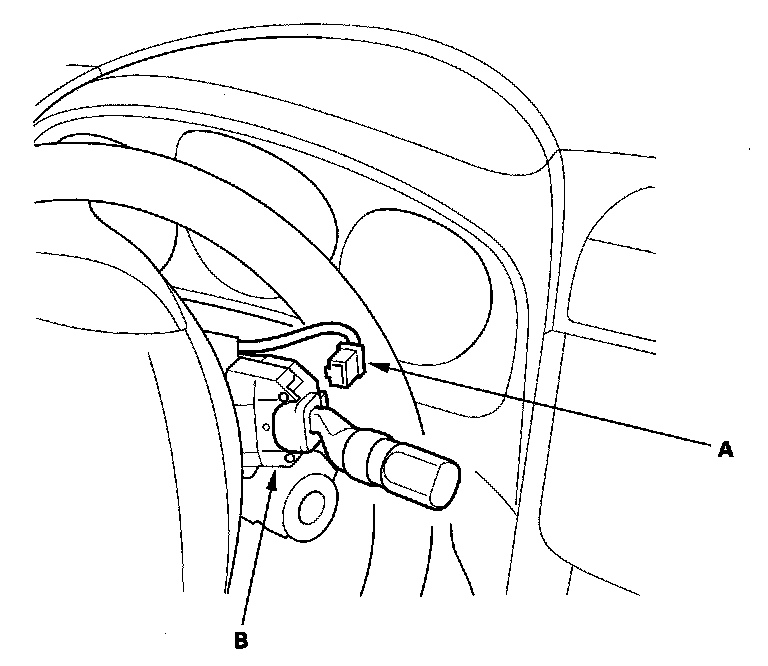

3. Disconnect the combination light switch 12P connector (A) from the wiper/washer switch (B).

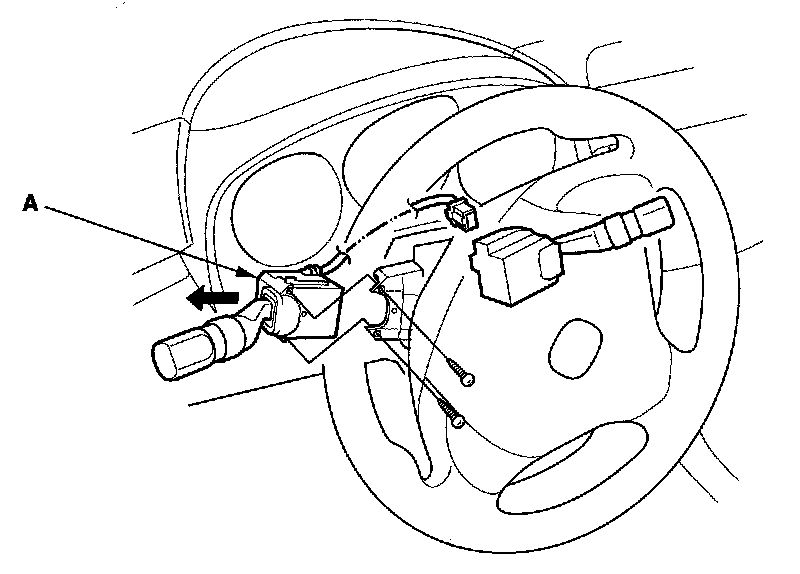

4. Remove the two screws, then slide out the combination light switch (A).






5. Inspect the connector terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

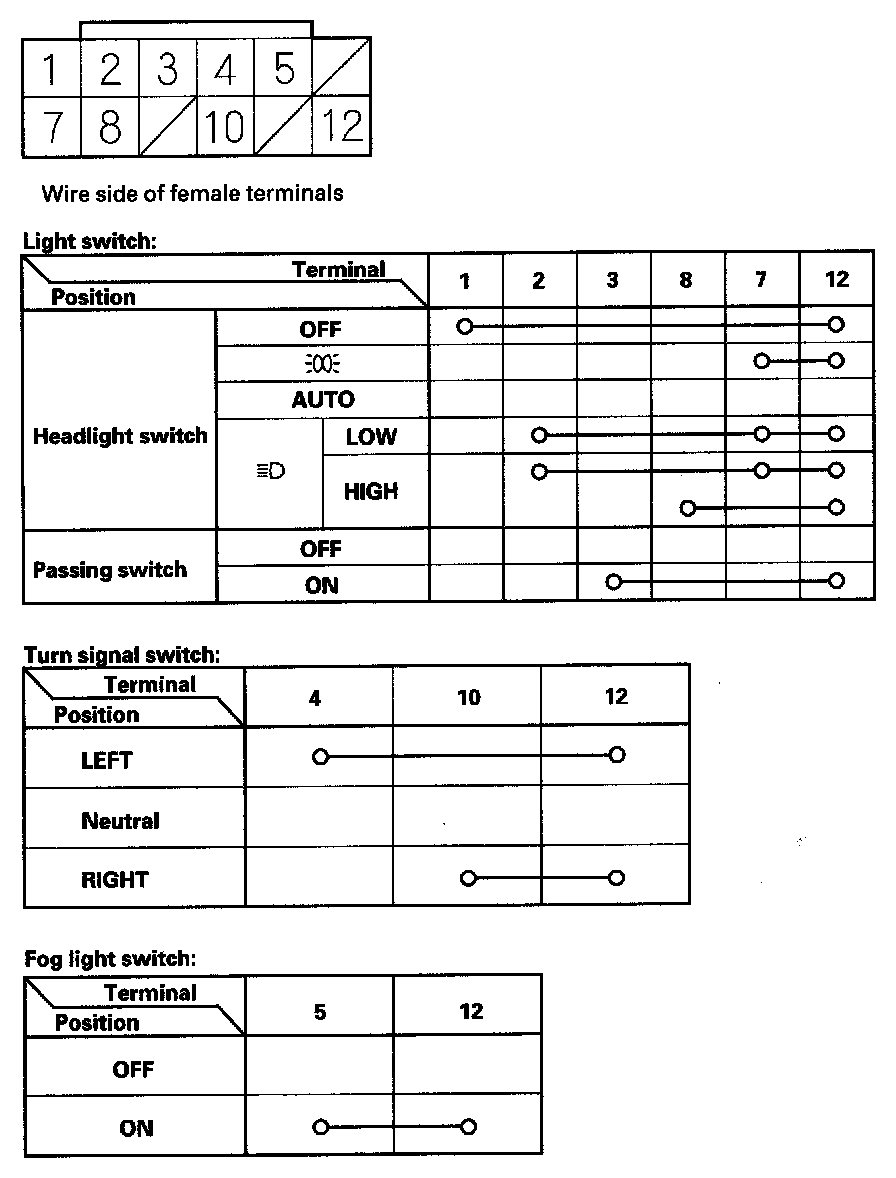

- If the terminals look OK, check for continuity between the terminals in each switch position according to the tables.






6. If the continuity check is not as specified, replace the switch.
