Drive Belt: Service and Repair
Drive Belt ReplacementSpecial Tools RequiredBelt tension release tool Snap-on YA9317 or equivalent, commercially available
1.

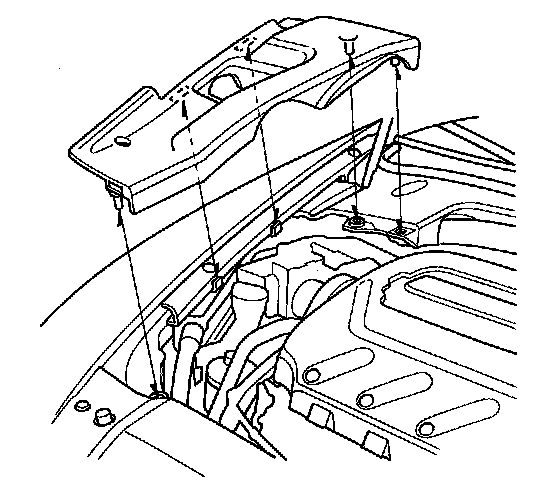

Remove the right side engine compartment cover.
2.

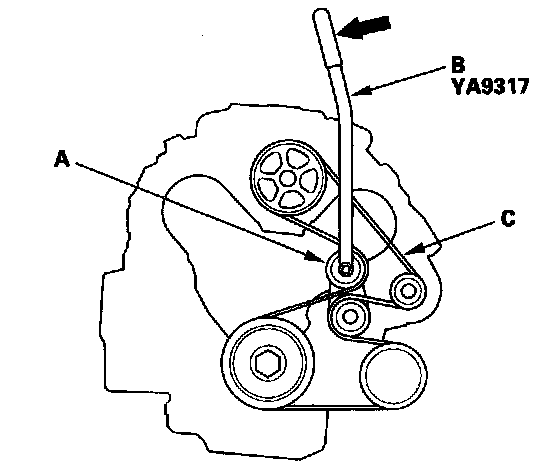

Move the auto-tensioner (A) using the belt tension release tool (B) to relieve tension from the
drive belt (C), then remove the drive belt.
3.
Install the new belt in the reverse order of removal.
