Drive Belt: Testing and Inspection
Drive Belt Inspection 1.

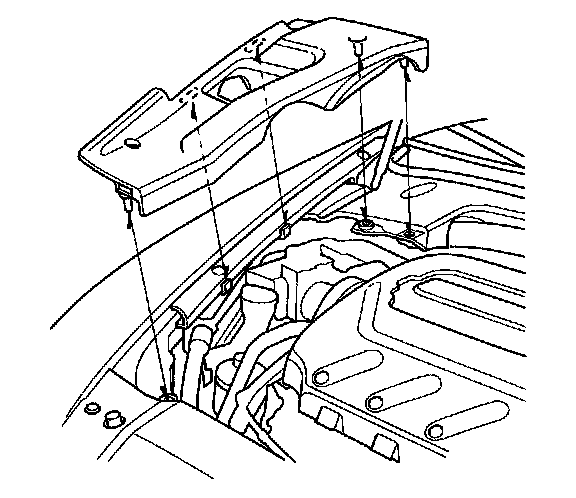

Remove the right side engine compartment cover.
2.
Inspect the belt for cracks or damage. If the belt is cracked or damaged, replace it.
3.

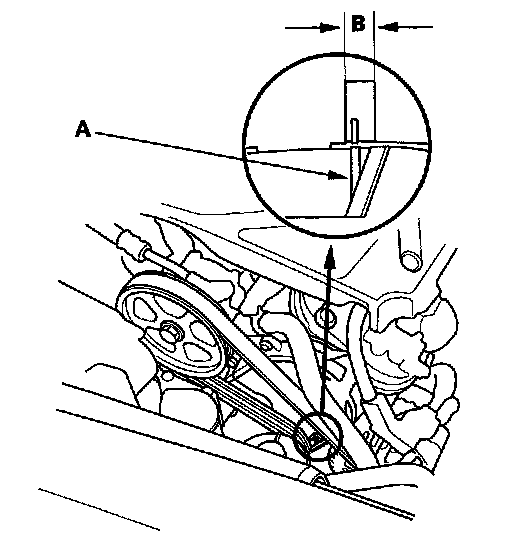

Check that the auto-tensioner indicator (A) is within the standard range (B) as shown. If it is out of the standard range, replace the
drive belt.
