MICU Input Test

MICU Input Test

NOTE: Make sure the ignition switch is OFF before troubleshooting the under-dash fuse/relay box connectors.

1. Remove the left kick panel.
2. Disconnect under-dash fuse/relay box connectors D, E, F, G, H, J, K, M, N, P, W, and X.

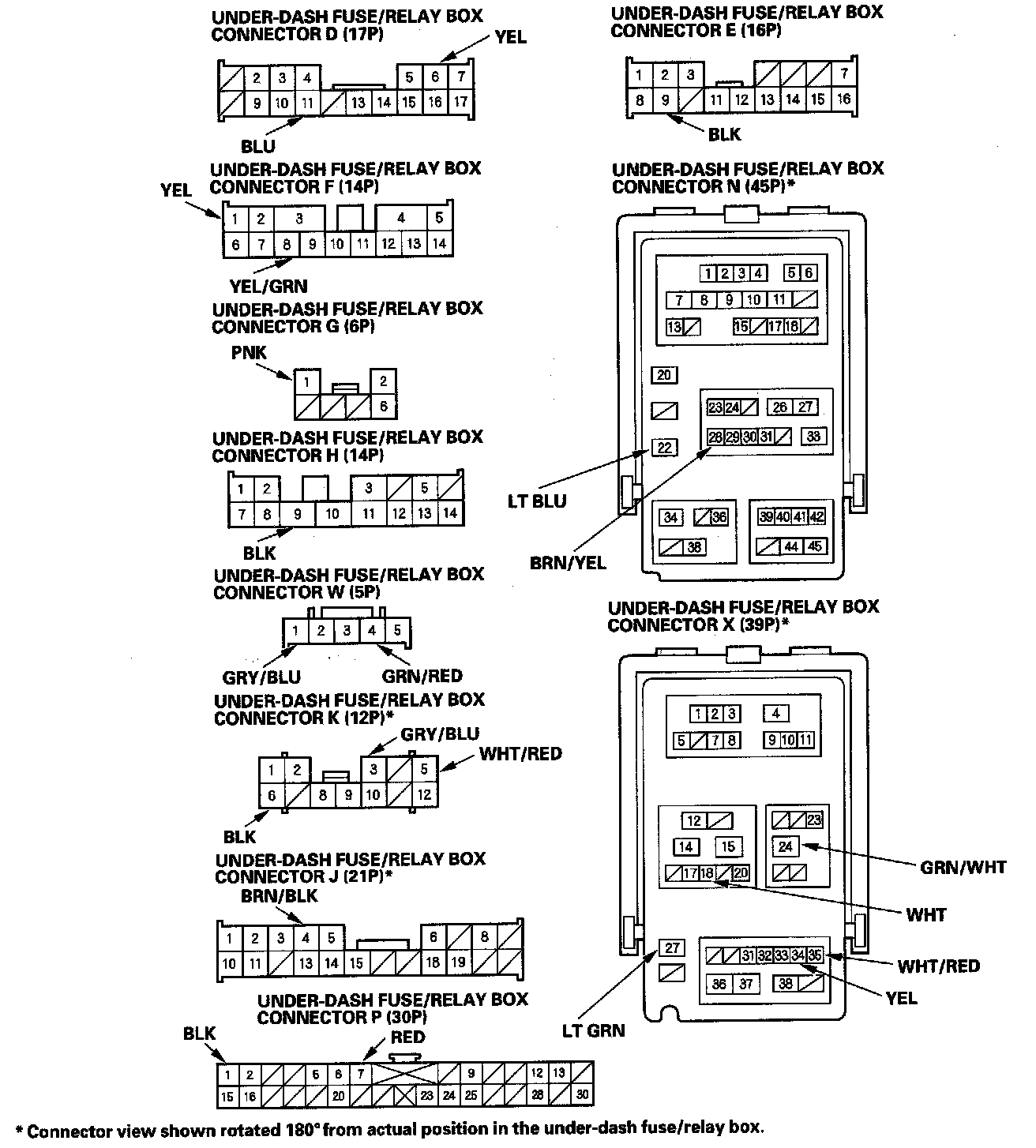

NOTE: All connectors are shown from wire side of female terminals.






3. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, go to step 4.

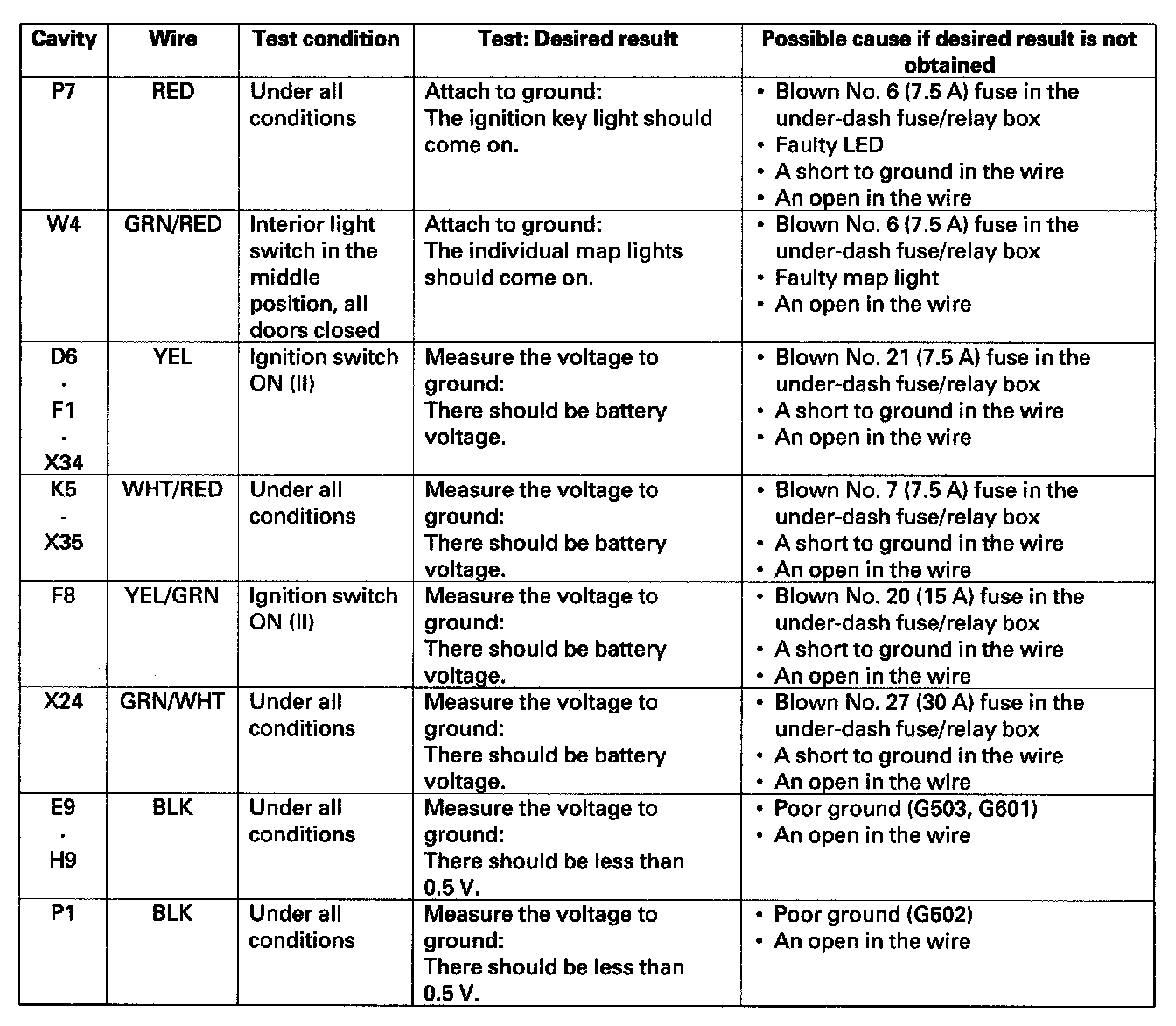

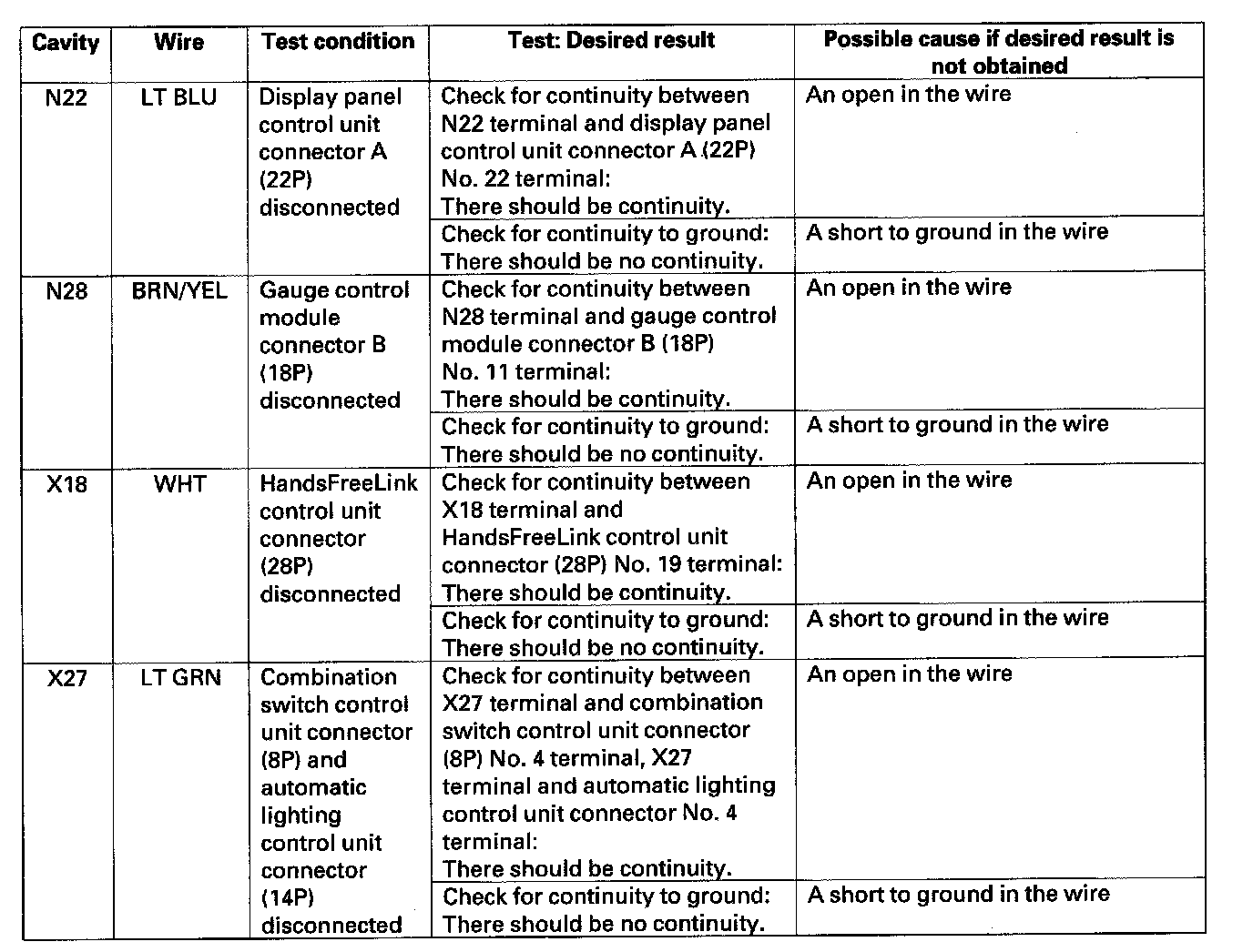

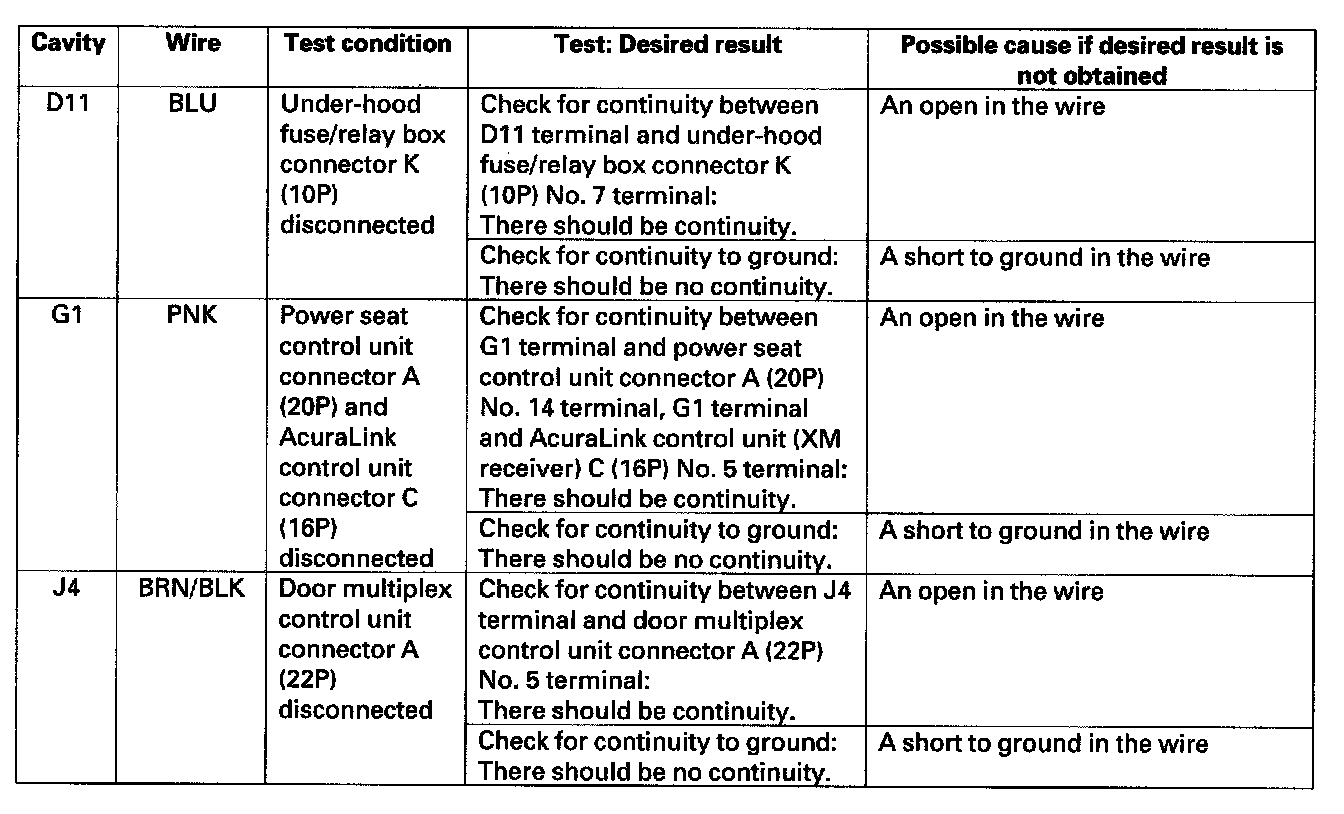

4. With the connectors still disconnected, make these input tests at the connectors.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.









5. Reconnect the connectors to the under-dash fuse/relay box, and make sure these input tests at the appropriate connectors on the under-dash fuse/relay box.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the multiplex integrated control unit must be faulty. Replace the under-dash fuse/relay box.
