A/F Sensor Replacement

A/F Sensor Replacement

Special Tools Required
02 sensor socket wrench. Snap-on YA8875 or SWR2, or equivalent, commercially available

Front Bank (Bank 2)

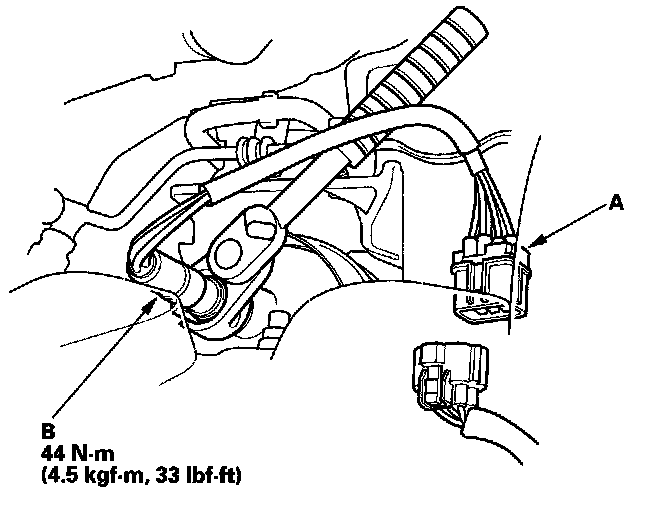

1. Disconnect the front A/F sensor 8P connector (A), then remove the A/F sensor (B).

2. Install the parts in the reverse order of removal.

Rear Bank (Bank 1)

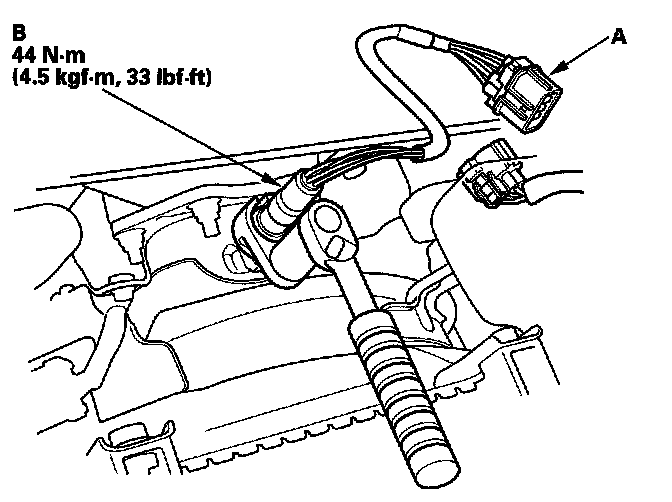

1. Disconnect the rear A/F sensor 8P connector (A), then remove the rear A/F sensor (B).

2. Install the parts in the reverse order of removal.
