Ignition Coil: Service and Repair
Ignition Coil Removal/Installation 1.

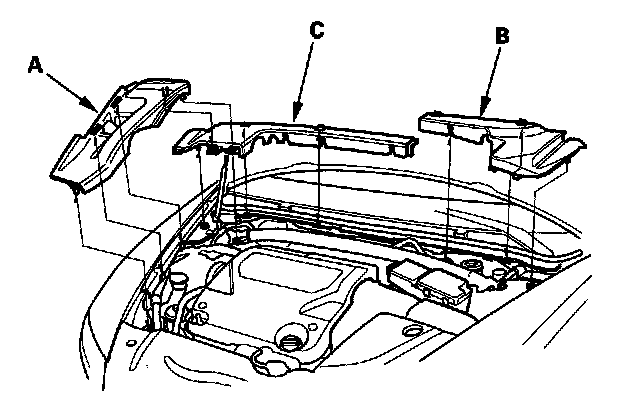

Remove the right side engine compartment cover (A), then remove the left rear engine compartment cover (B) and right rear engine compartment cover (C).
2.

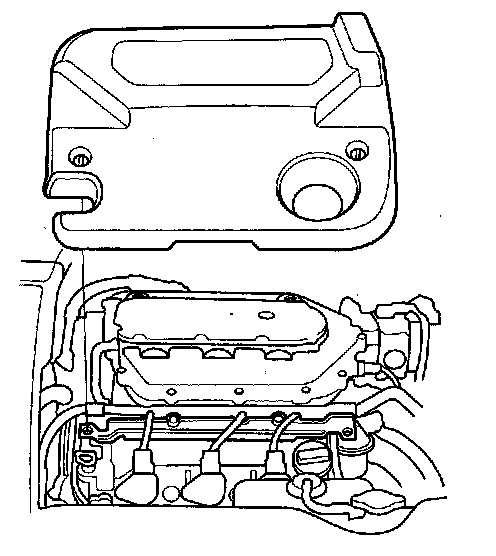

Remove the engine cover.
3.

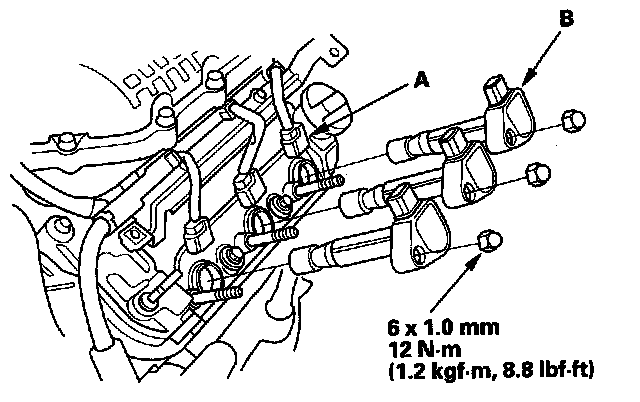

Disconnect the
ignition coil connectors (A), then remove the ignition coils (B).
4.
Install the
ignition coils in the reverse order of removal.
