Paddle Shifter - (Downshift Switch) Test
Paddle Shifter - (Downshift Switch) TestSRS components are located in this area. Review the SRS component locations and the precautions and procedures in the SRS before doing repair or service.
1. Remove the steering wheel.

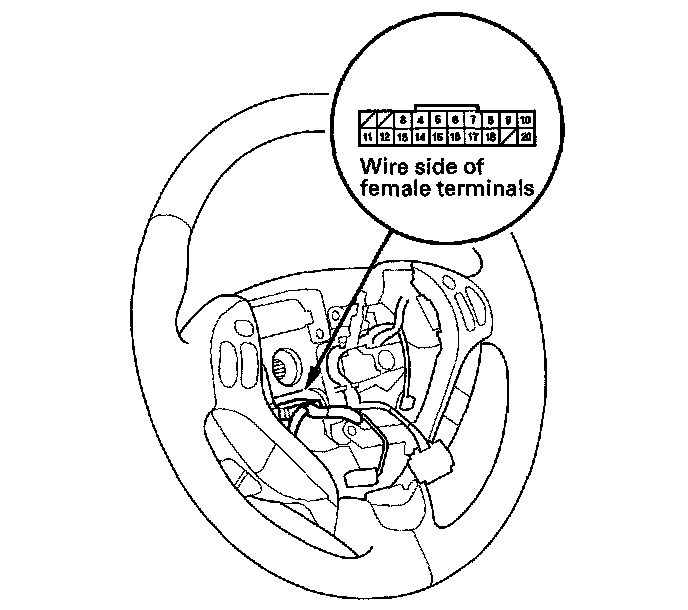

2. Check the paddle shifter - (downshift switch) for continuity between steering wheel switch harness 20P connector terminals No. 16 and No. 7. There should be continuity while pressing the paddle shifter - (downshift switch), and no continuity when the paddle shifter - is released.
3. The paddle shifter - (downshift switch) test is finished if the test result is OK.
If the paddle shifter - works incorrectly at the 20P connector, test the paddle shifter - at the connector.

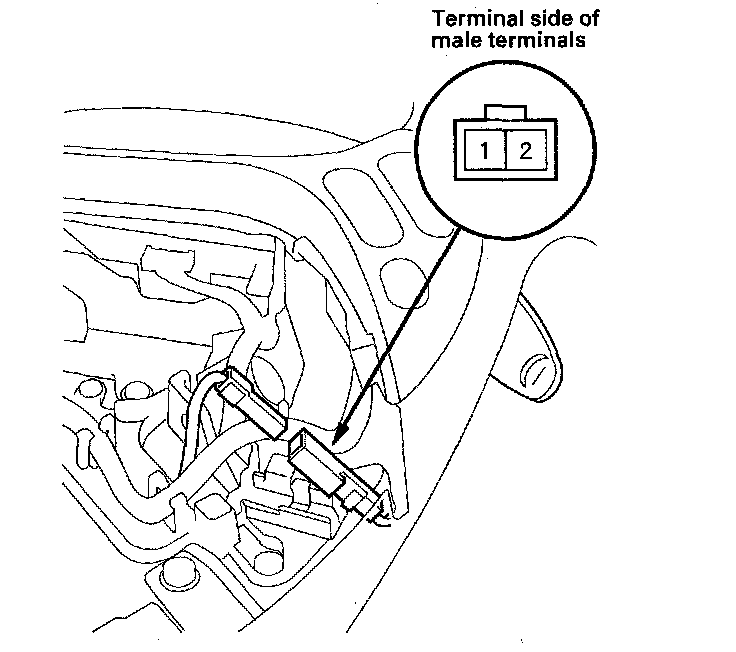

4. Remove the paddle shifter - (downshift switch) connector from its holder, and disconnect the, connector.
5. Check the paddle shifter - (downshift switch) for continuity between the paddle shifter - (downshift switch) connector terminals while pressing the paddle shifter - and when the paddle shifter - is released.
There should be continuity while pressing the paddle shifter - and no continuity when the paddle shifter - is released.
6. Replace the paddle shifter - (downshift switch) if the paddle shifter - works incorrectly.
7. Replace the steering wheel switch harness if the paddle shifter - is OK.
