Side Impact Sensor (First) Replacement

Side Impact Sensor (First) Replacement

NOTE: Review the seat replacement procedure before doing repairs or service.

Removal

1. Disconnect the negative cable from the battery, then wait for 3 minutes before starting work.
2. Disconnect the appropriate side airbag 2P connector.
3. Remove the seat assembly.
4. Remove the front door sill trim and the B-pillar lower trim panel.
5. Disconnect the floor wire harness 2P connector from the side impact sensor (first).

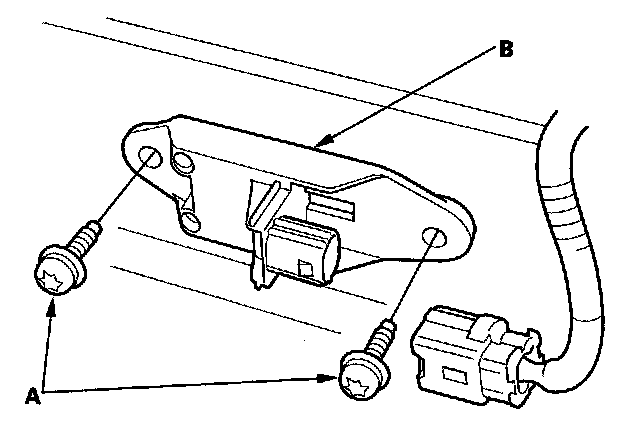

6. Using a TORX T30 bit, remove the TORX bolts (A), then remove the side impact sensor (first) (B).






Installation

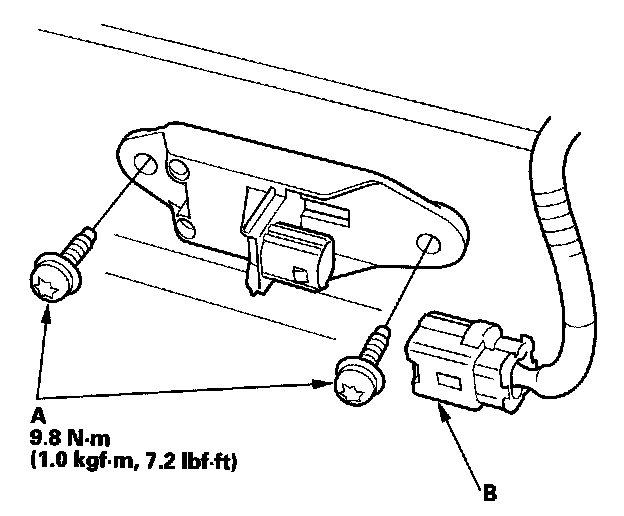

1. Install the new side impact sensor (first) with TORX bolts (A), then connect the floor wire harness 2P connector (B) to the side impact sensor (first).






2. Reconnect the negative cable to the battery.
3. Install all removed parts.
4. After installing the side impact sensor (first), confirm proper system operation: Turn the ignition switch ON (II); the SRS indicator should come on for about 6 seconds and then go off.
