Alignment
Caster Caster angle
3°17'±45'
(Maximum difference between the right, and left side: 0°45')
Camber Camber angle:
Front
-0°30'±30'
Rear
-1°00'±30'
(Maximum difference between the right and left side: 0°45')
Toe-in Front toe-in
0±2 mm (0±0.08 in.)
Rear toe-in
0±2 mm (0±0.08 in.)

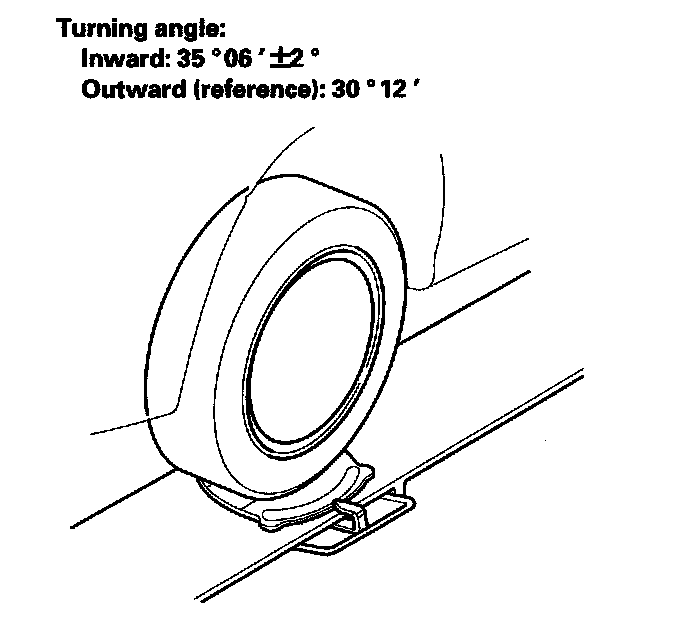

Turning Angle
