Component Locations

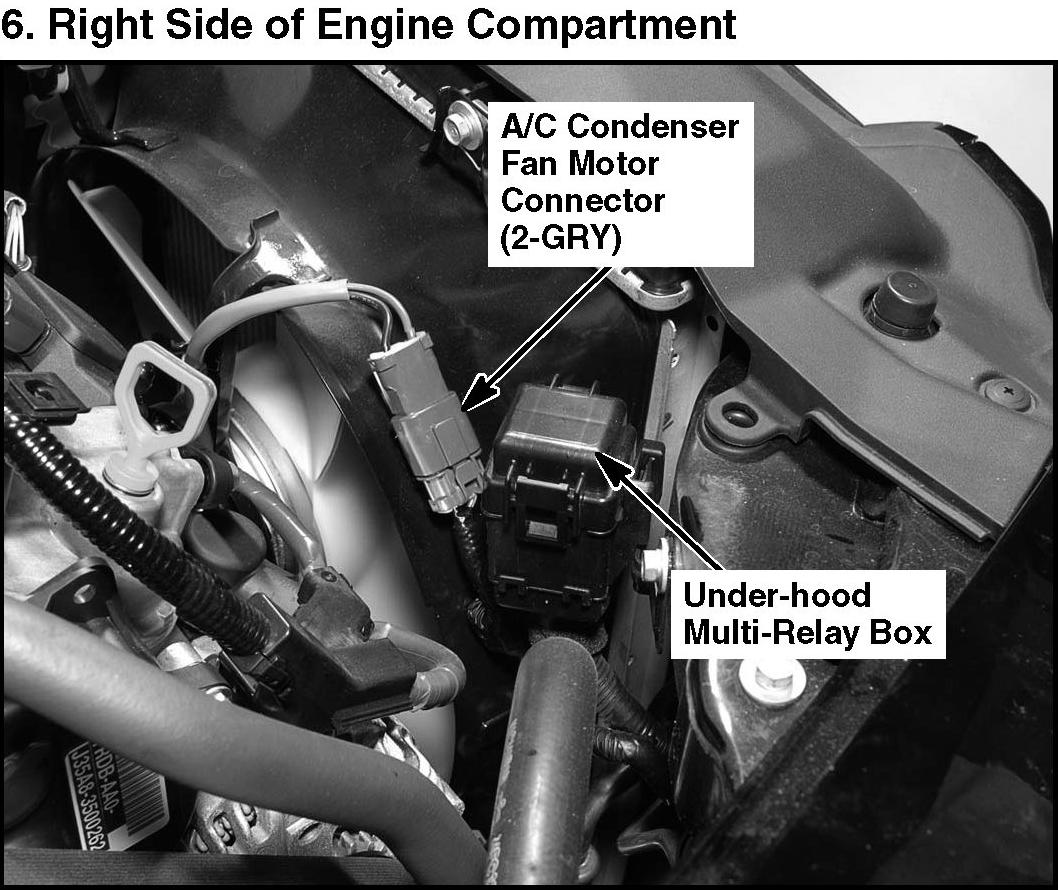

6. Right Side Of Engine Compartment:

Antilock Brake System Component Location Index:

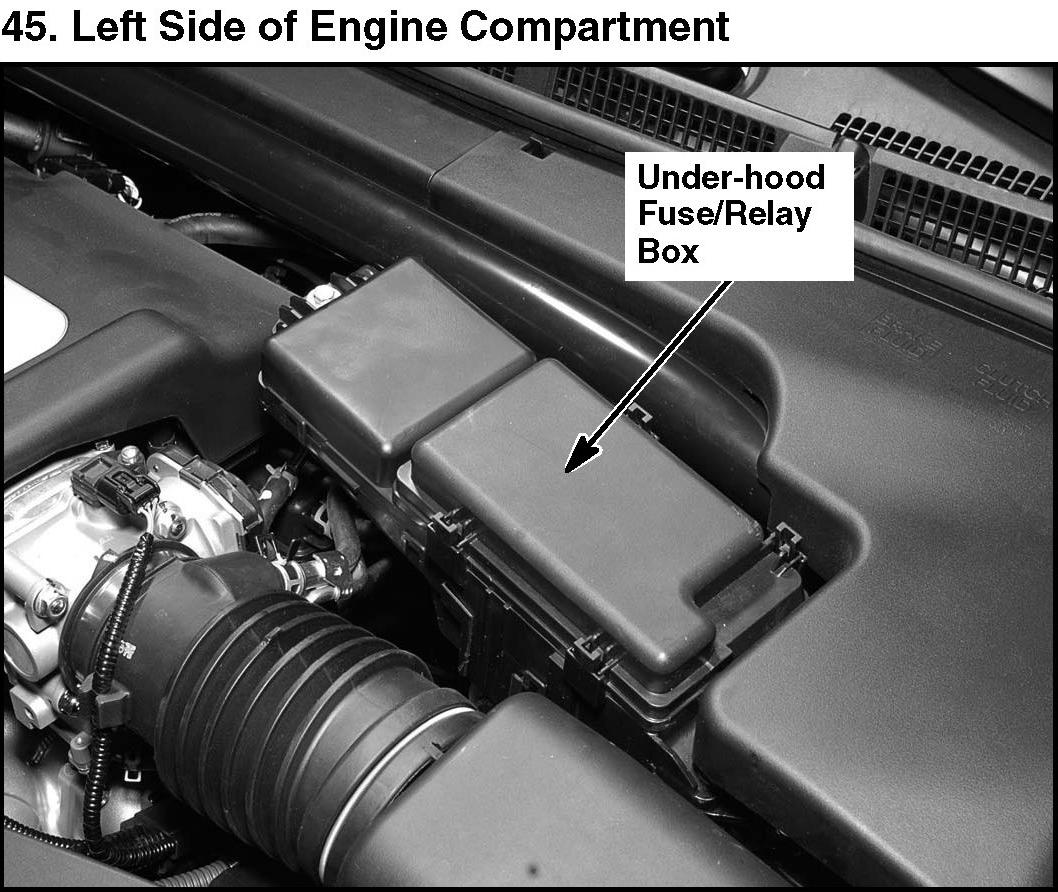

45. Left Side Of Engine Compartment:

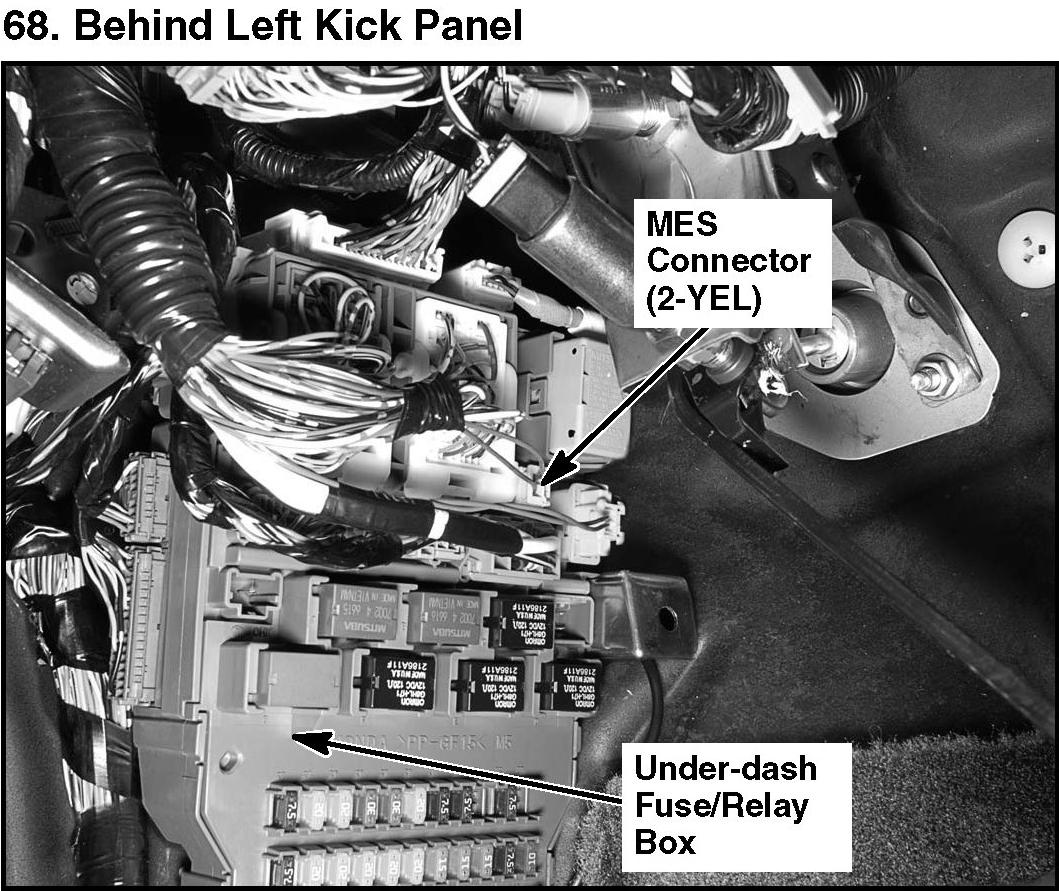

68. Behind Left Kick Panel:

Ignition System Component Location Index:

Climate Control Component Location Index:

Relay And Control Unit Locations Engine Compartment:

Relay And Control Unit Locations Dashboard:

Multiplex Integrated Control System Component Location Index:

Keyless/Power Door Locks/Security System Component Location Index:

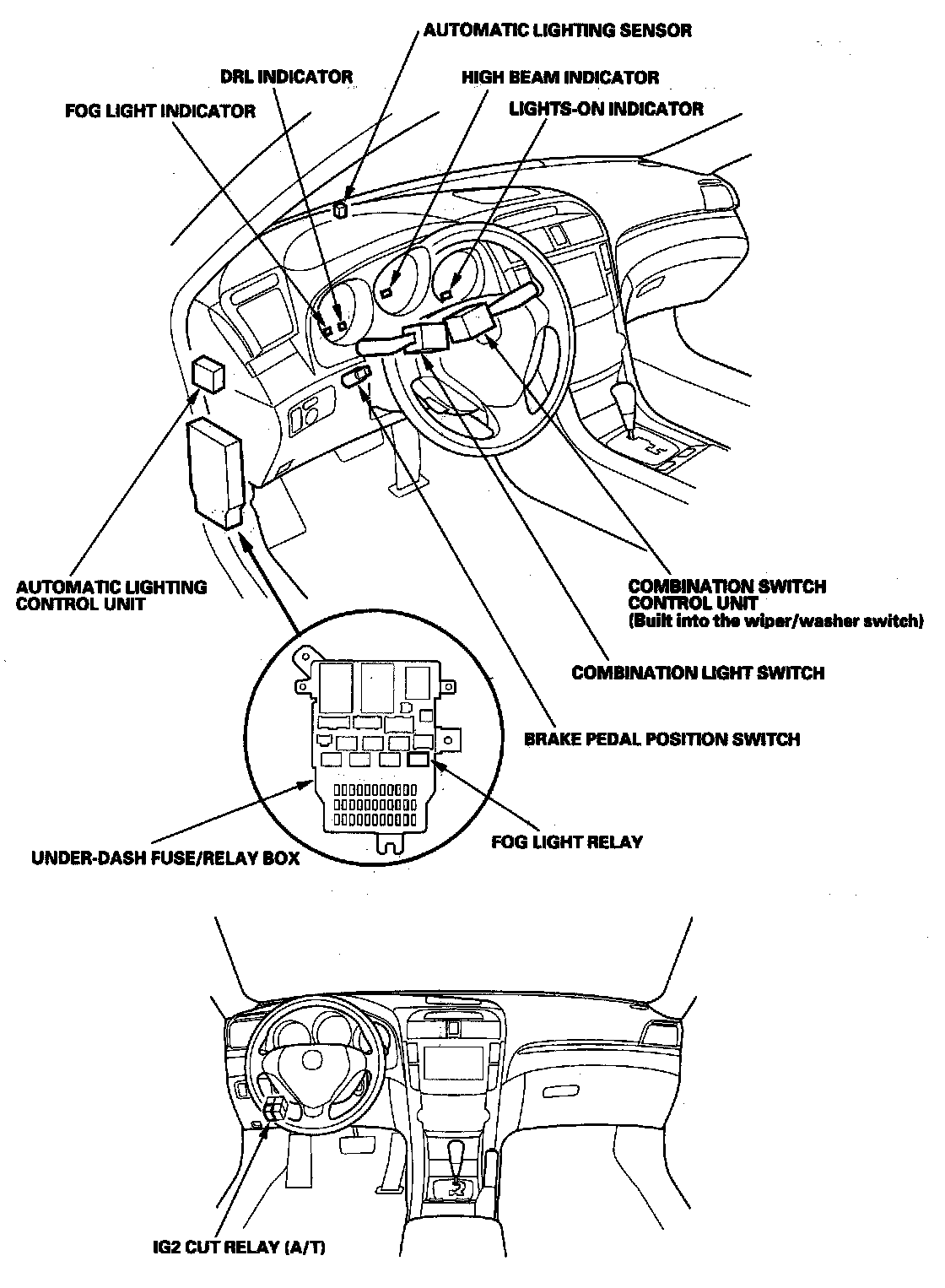

Exterior Lights Component Location Index:

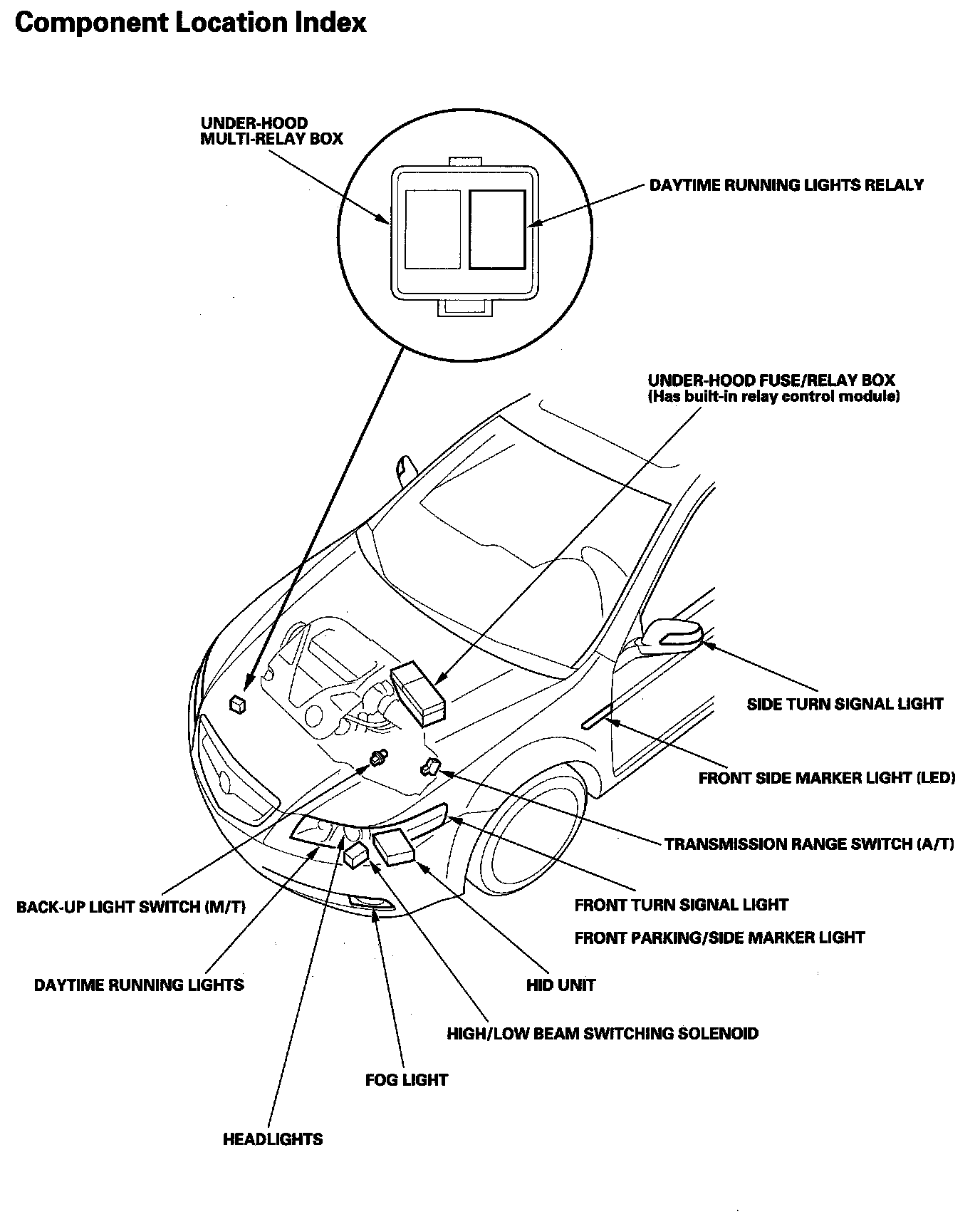

Exterior Lights Component Location Index:

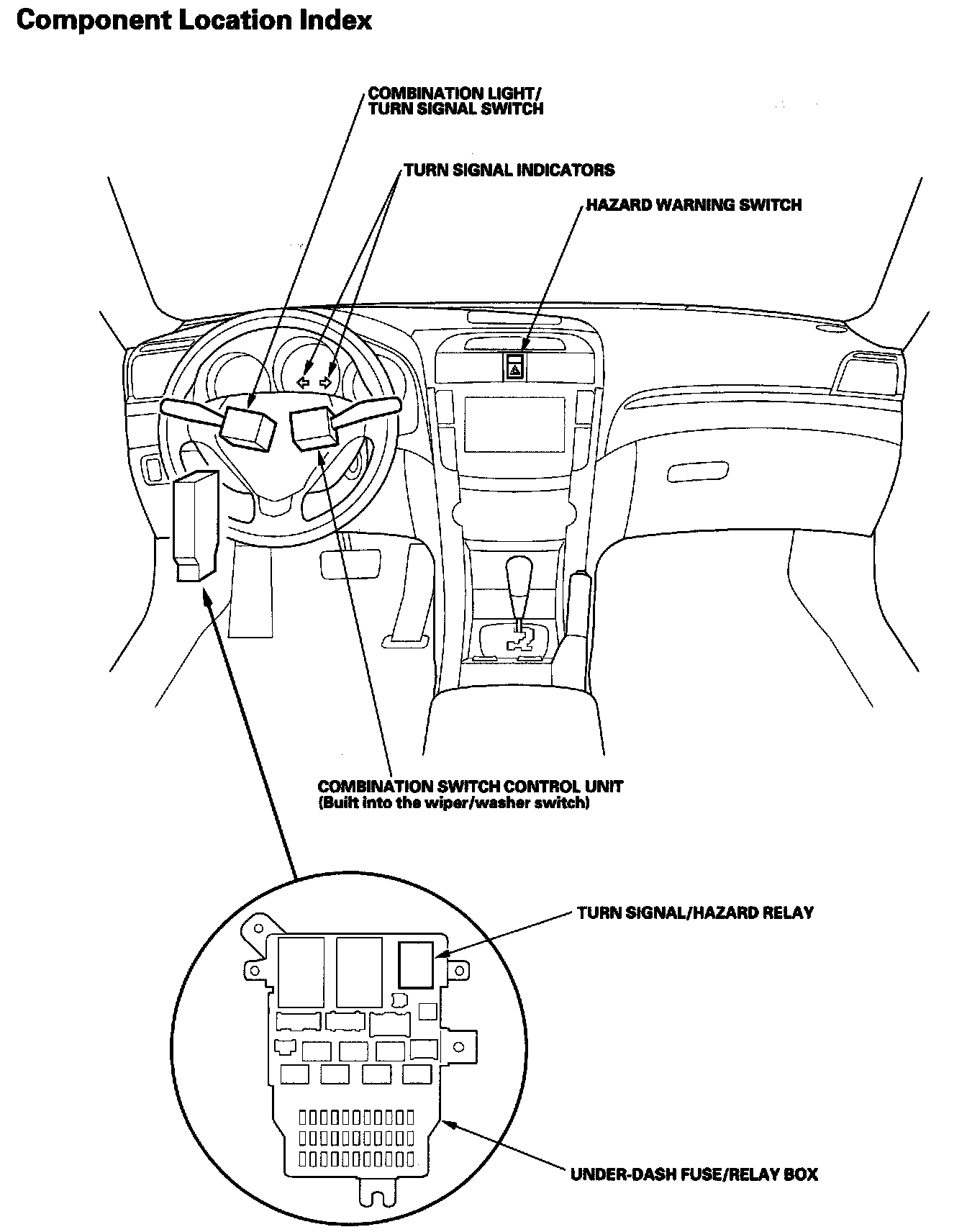

Turn Signal/Hazard Warning Lights Component Location Index:

Power Windows Component Location Index:

Wipers/Washers Component Location Index:

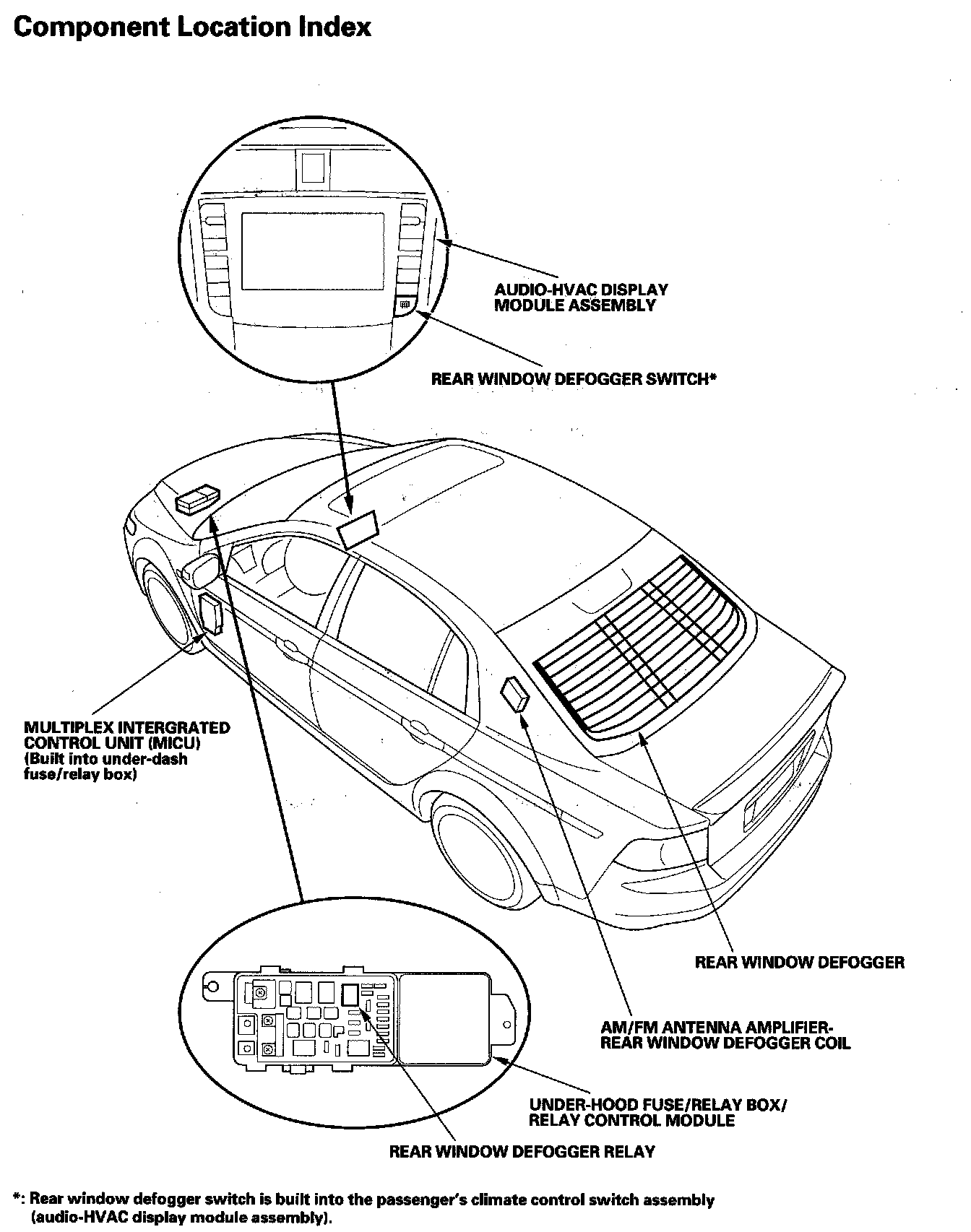

Rear Window Defogger Component Location Index:

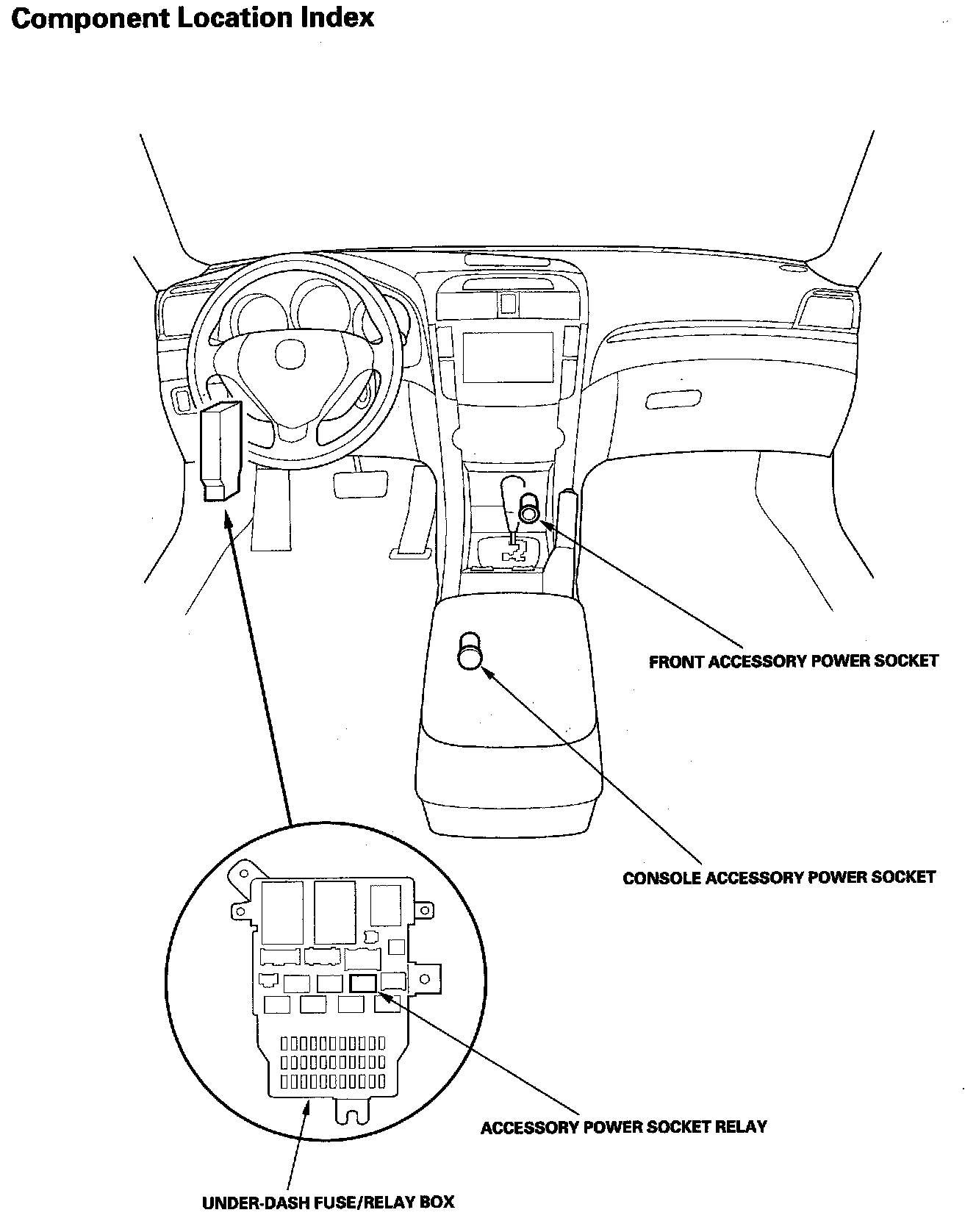

Accessory Power Sockets Component Location Index:

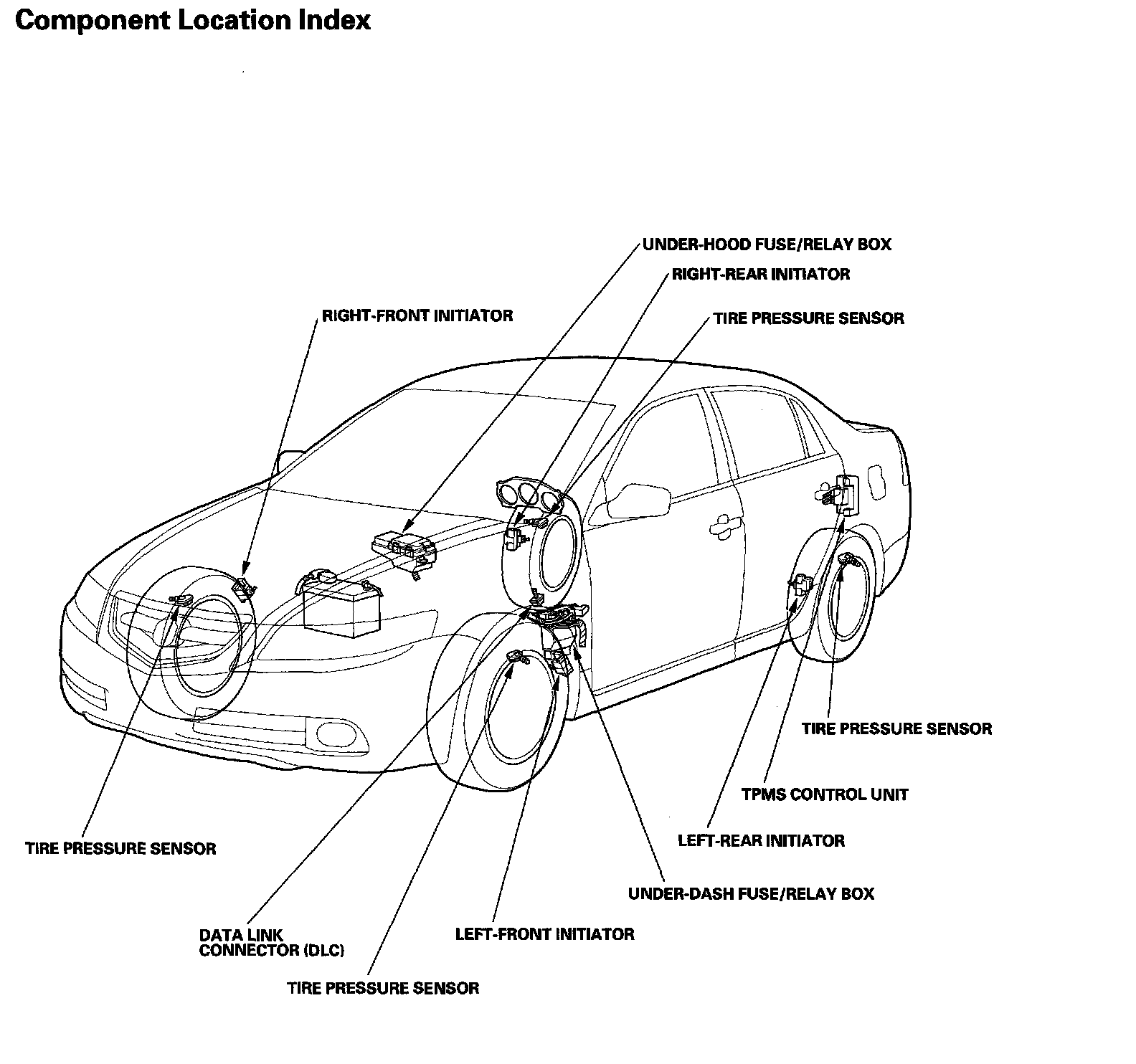

TPMS Component Location Index:
