Clutch Switch: Testing and Inspection
Clutch Interlock Switch TestM/T model 1.

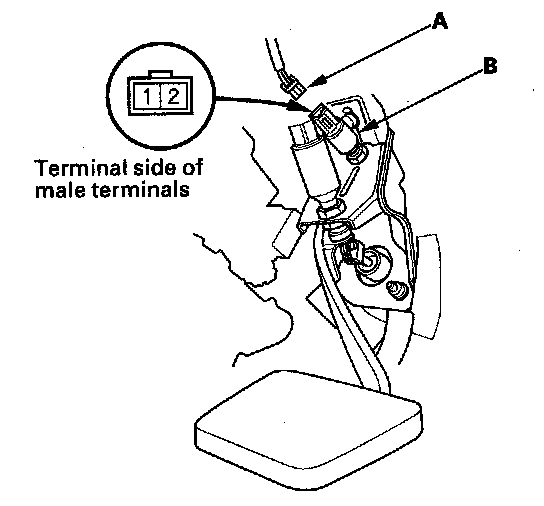

Disconnect the clutch interlock switch 2P connector (A).
2.
Remove the clutch interlock switch (B).
3.

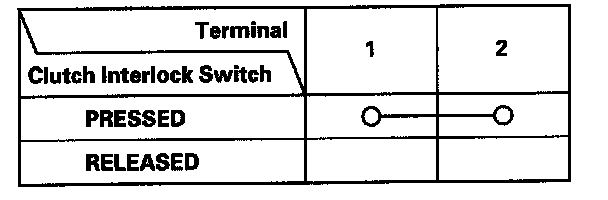

Check for continuity between the terminals according to the table.
-
If the continuity is not as specified, replace the clutch interlock switch.
-
If OK, install the clutch interlock switch and adjust the pedal height.
