Removal and Replacement
Starter Removal and InstallationRemoval
1. Make sure you have the anti-theft codes for the audio system and the navigation system (if equipped). Make sure the ignition switch is OFF.
2. Remove the left side engine compartment cover.
3. Disconnect the negative cable from the battery, then disconnect the positive cable.
4. Remove the battery and the battery tray.

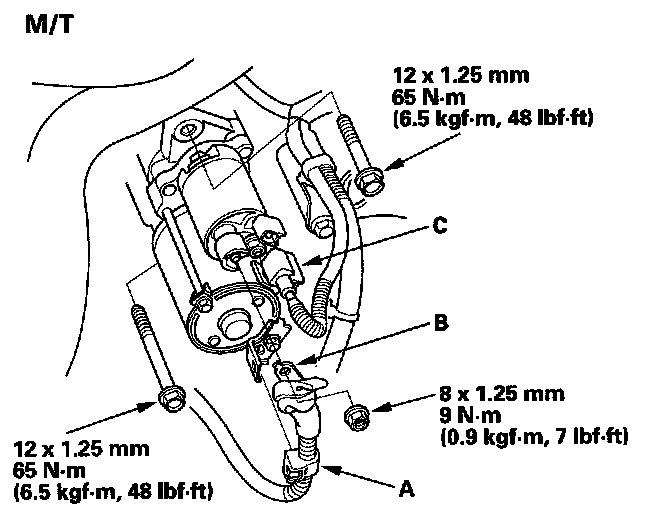

5. Remove the harness clamp (A).
6. Disconnect the starter cable (B) from the B terminal, then disconnect the BLK/WHT wire (C) from the S terminal.
7. Remove the two bolts holding the starter, then remove the starter.
Installation
1. Install the starter, then install the harness clamp (A), connect the starter cable (B) to the B terminal and the BLK/WHT wire (C) to the S terminal. Make sure the crimped side of the ring terminal faces away from the starter when you connect it.
NOTE: Always use a new gasket (A/T model).
2. Install the battery tray and the battery.
3. Connect the positive cable to the battery, then connect the negative cable.
4. Start the engine to make sure the starter works properly.
5. Reinstall the left side engine compartment cover.
6. Enter the anti-theft codes for the audio system and the navigation system (if equipped).
7. Set the clock (on vehicles without navigation).
