Starter Solenoid: Testing and Inspection
Starter Solenoid Test1. Make sure you have the anti-theft codes for the audio system and the navigation system (if equipped).
2. Remove the left side engine compartment cover.
3. Disconnect the negative cable from the battery.

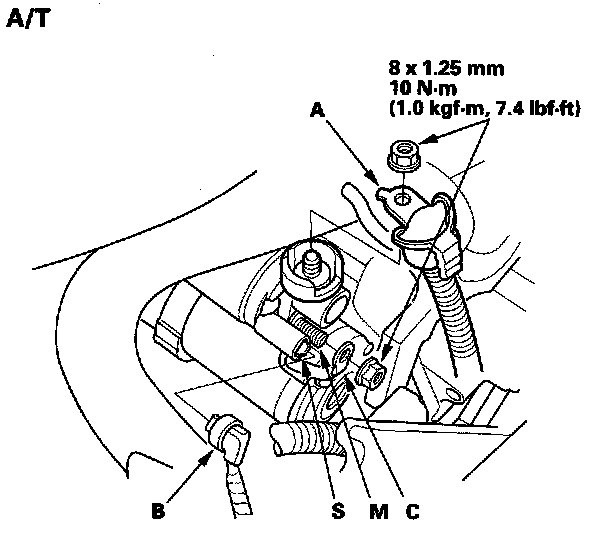

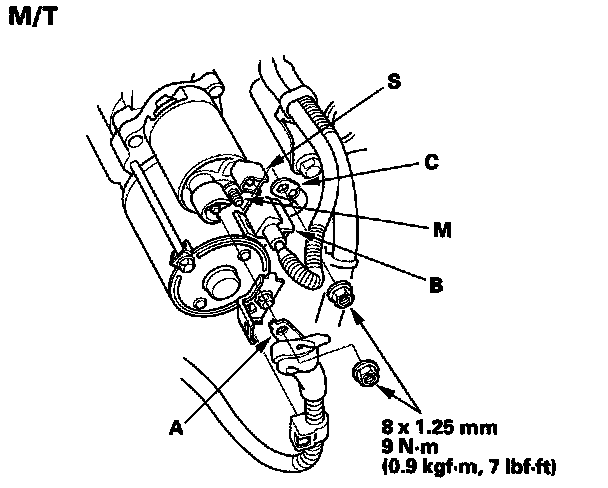

4. Disconnect the starter cable (A), BLK/WHT wire (B), and motor cable (C).
5. Check the hold-in coil for continuity between the S terminal and the armature housing (ground). There should be continuity.
- If there is continuity, go to step 6.
- If there is no continuity, replace the solenoid.
6. Check the pull-in coil for continuity between the S terminal and the M terminal. There should be continuity.
- If there is continuity, the solenoid is OK.
- If there is no continuity, replace the solenoid.
7. Connect the cables and wire in the reverse order of removal.
8. Connect the negative cable to the battery.
9. Reinstall the left side engine compartment cover.
10. Enter the anti-theft codes for the audio system and the navigation system (if equipped).
11. Set the clock (on vehicles without navigation).
