Rear Power Window Motor Test
Rear Power Window Motor Test 1.
Remove the rear door panel.
2.

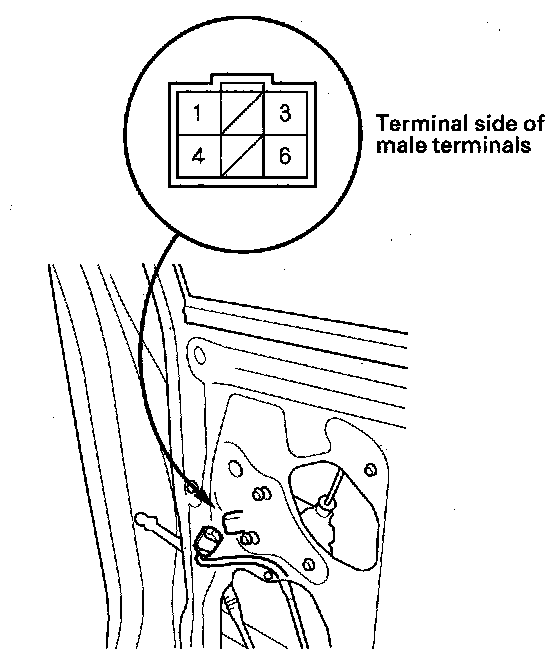

Disconnect the 6P connector from the
power window motor.
3.

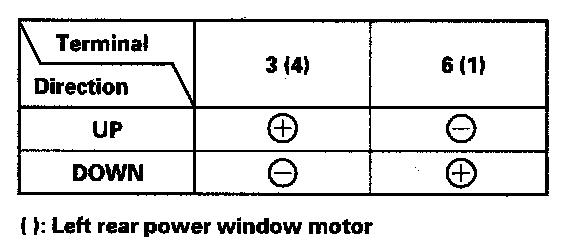

Test the motor by connecting battery power and ground according to the table. When the motor stops running, disconnect one lead immediately.
4.
If the motor does not run or fails to run smoothly, replace it.
