HFL Switch/HFL-Voice Control Switch Test/Replacement

HFL Switch/HFL-Voice Control Switch Test/Replacement

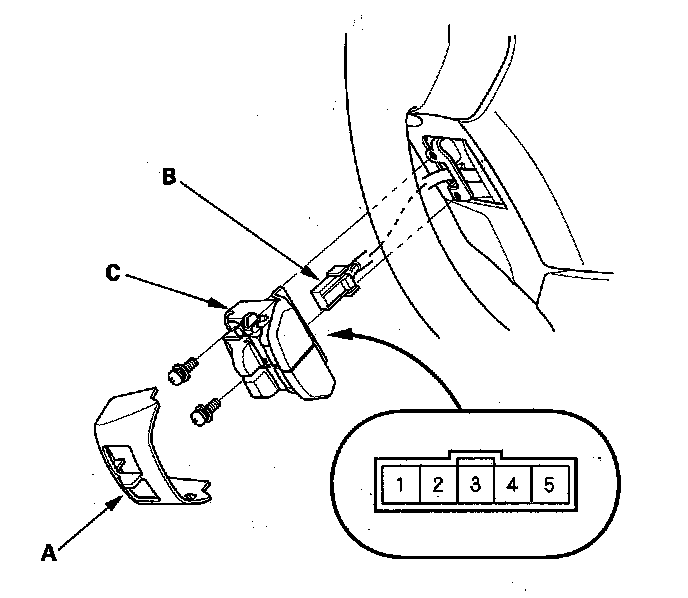

1. Remove the switch cover (A), then remove the two screws.

2. Disconnect the 5P connector (B) and remove the HFL switch or HFL-voice control switch (C).

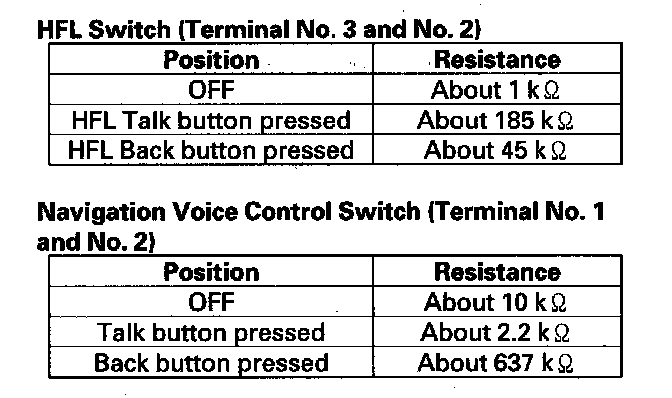

3. Measure the resistance between the No. 3 and No. 2 terminals in each switch position according to the table.

4. If the resistance is not as specified, replace the remote switch.
