Switch Test/Replacement

Switch Test/Replacement

1. Remove the center console front panel.

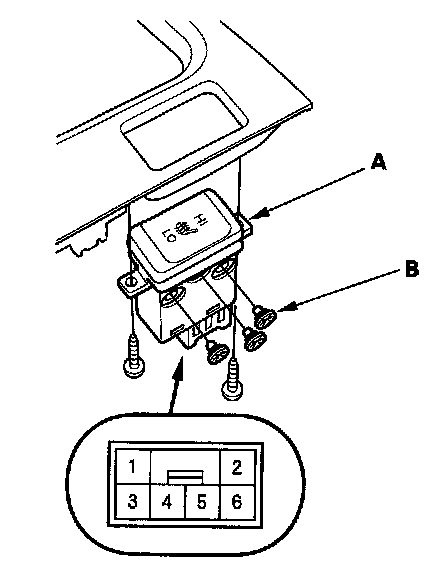

2. Disconnect the 6P connector from the seat heater switch (A), then remove the switch.

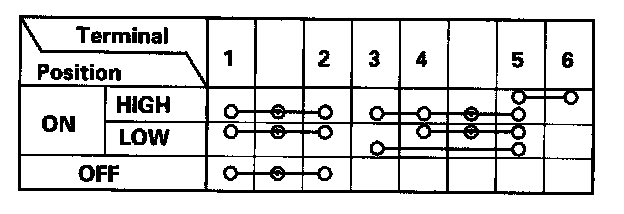

3. Check for continuity between the terminals in each switch position according to the table.






4. If the continuity check is not as specified, replace the illumination bulbs (B) or the switch.
