Blower Unit Removal/Installation

Blower Unit Removal/Installation

1. Remove the following items:
- Passenger's dashboard lower cover
- Glove box
- Passenger's kick panel

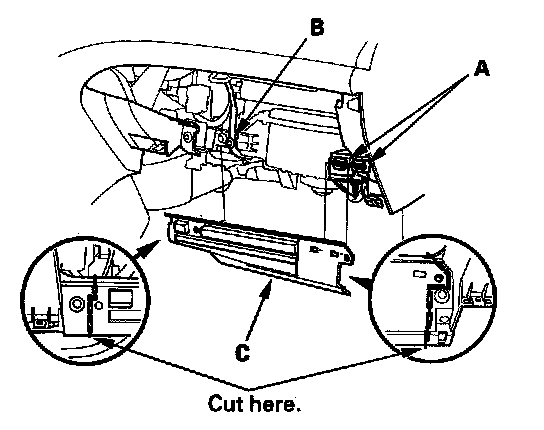

2. Remove the wire harness connector clips (A), the wire harness clip (B), and bolt. Cut the plastic cross brace (C) in the glove box opening with diagonal cutters in the area shown.

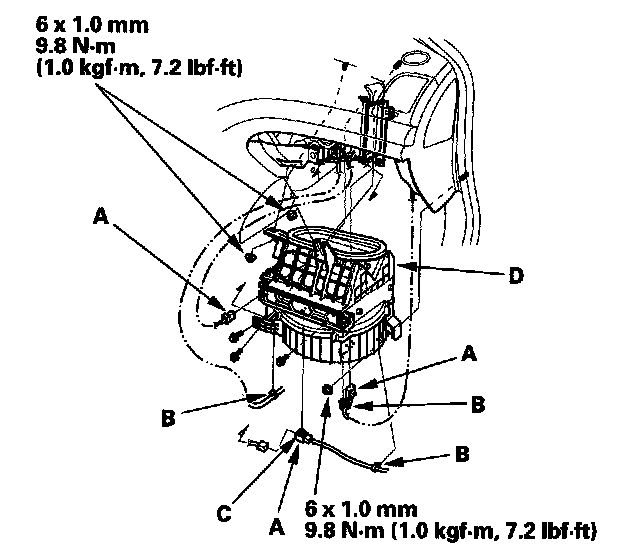

3. Disconnect the connectors (A) from the blower motor, the floor wire harness, and the recirculation control motor, then remove the wire farness clips (B) and the connector clip (C). Remove the mounting nuts, the mounting bolts and the blower unit (D).






4. Install the unit in the reverse order of removal. Make sure that there is no air leakage.
