Park Pin Switch Test

Park Pin Switch Test
1. Remove the center console cover.

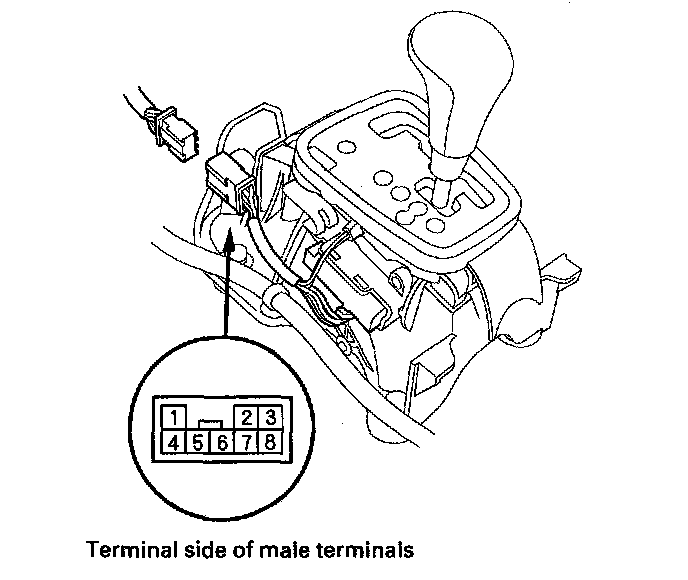

2. Disconnect the transmission gear selection switch/park pin switch connector.





3. Shift the shift lever to P, then check for continuity between transmission gear selection switch/park pin switch connector terminals No. 1 and No. 4. There should be no continuity.
4. Shift the shift lever out of P, and check for continuity between transmission gear selection switch/park pin switch connector terminals No. 1 and No. 4. There should be continuity.
5. If the park pin switch is faulty, replace it.
