Accessory Control Display: Service and Repair

Interface Dial Removal/Installation

1. Remove the audio unit. Audio Unit Removal/Installation

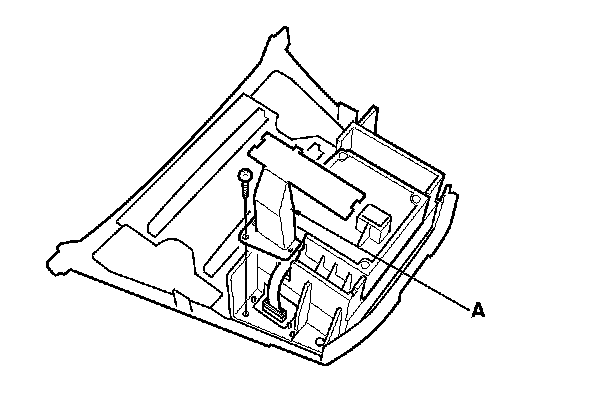

2. Remove the harness cover (A).

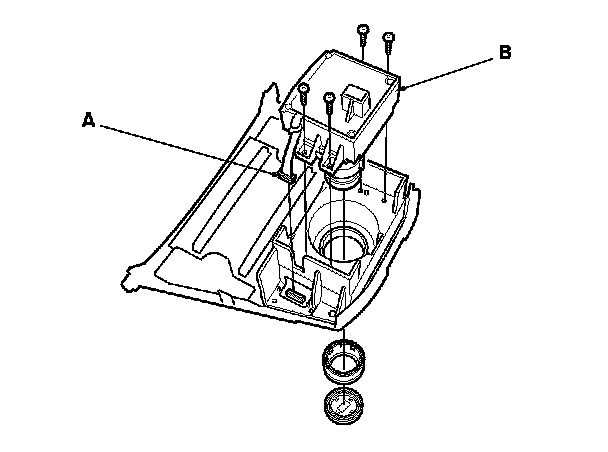

3. Disconnect the interface dial connector (A), then remove the interface dial (B).
NOTE: If the hard buttons do not work, but the jog dial does, recheck the interface dial connector connection.

4. Install the dial in reverse order of removal.
