Navigation Display: Service and Repair

Navigation Display Unit Removal/Installation

1. Remove the dashboard center upper panel. Dashboard Center Upper Panel Removal/Installation

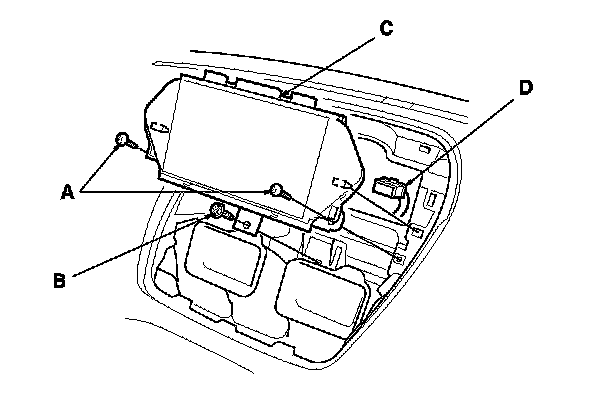

2. Remove the two screws (A) and bolt (B), then remove the display unit (C).

3. Disconnect the navigation display connector (D).

4. Install the unit in the reverse order of removal. Be careful not to drop the forward bolt behind the dashboard.
