Subframe: Service and Repair

Subframe Replacement

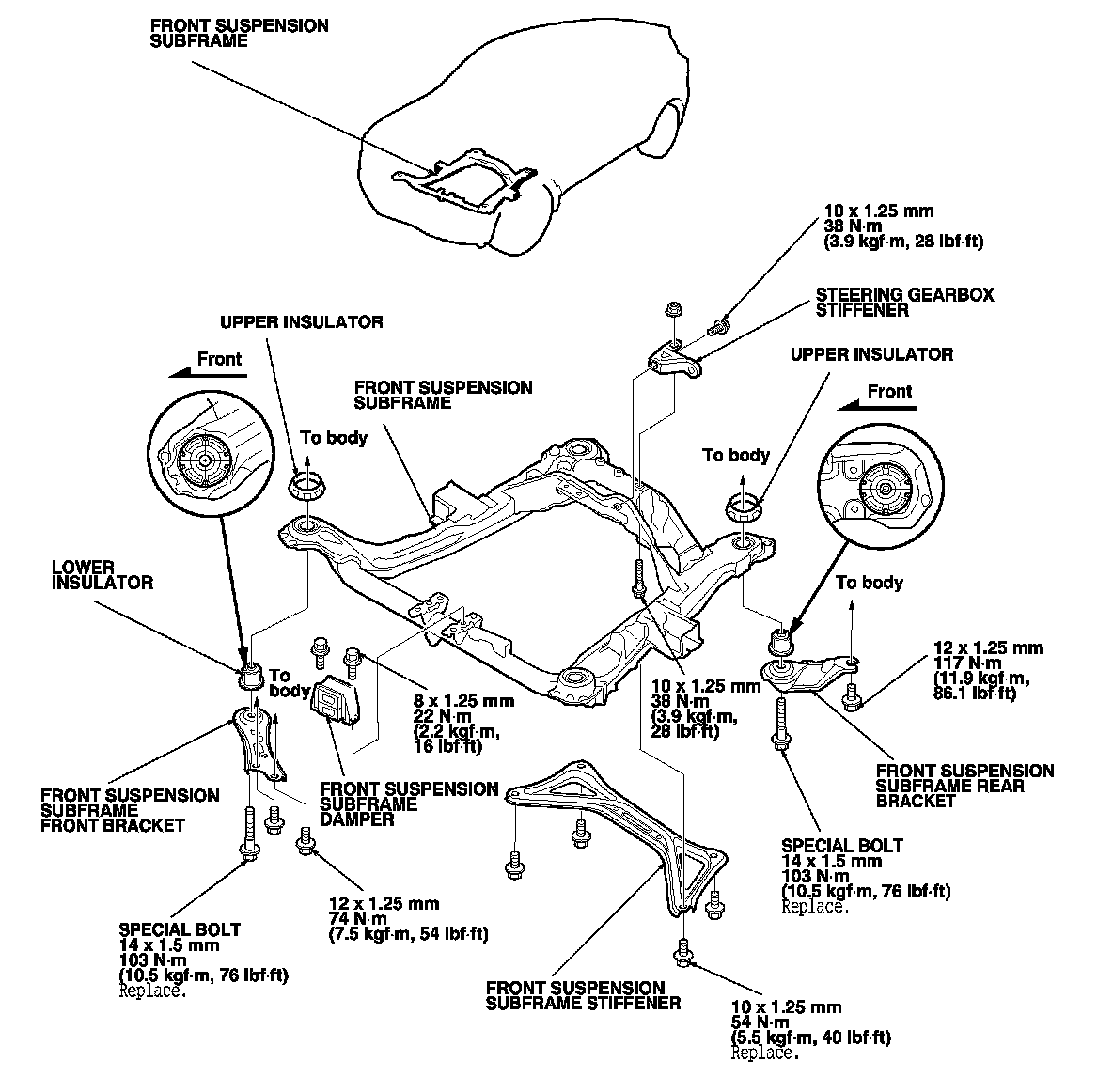

Front Subframe Torque

After removing the subframe mounting bolts and front subframe stiffener mounting bolts, be sure to replace them with new ones.

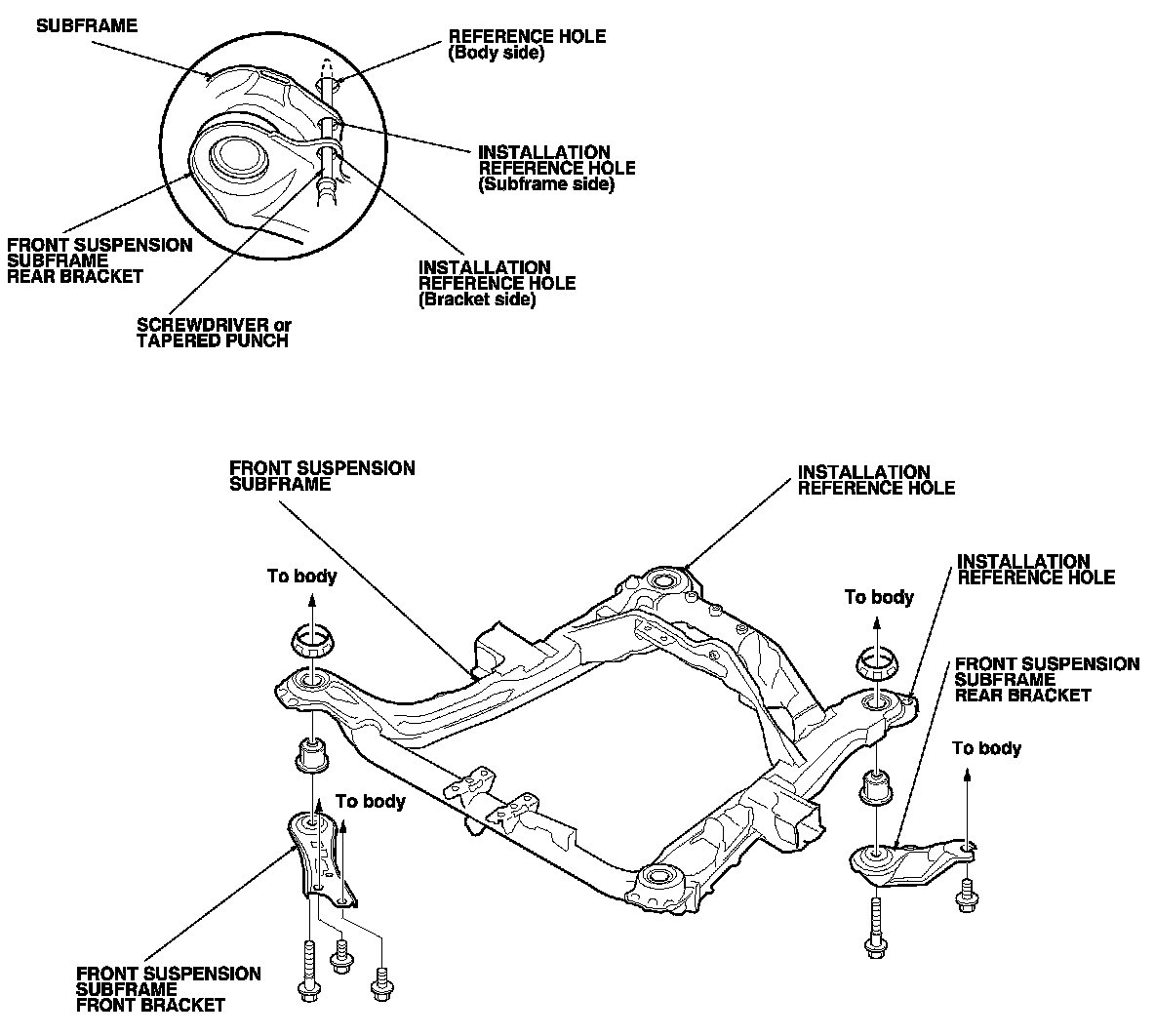

Front Subframe Alignment

NOTE:

- After mounting the subframe and brackets loosely, align all of the installation reference holes in the subframe, in the subframe front bracket, and in the body using a screwdriver or tapered punch as a guide, then tighten the bolts.

- After reinstalling all removed parts, check and adjust the front wheel alignment. Service and Repair

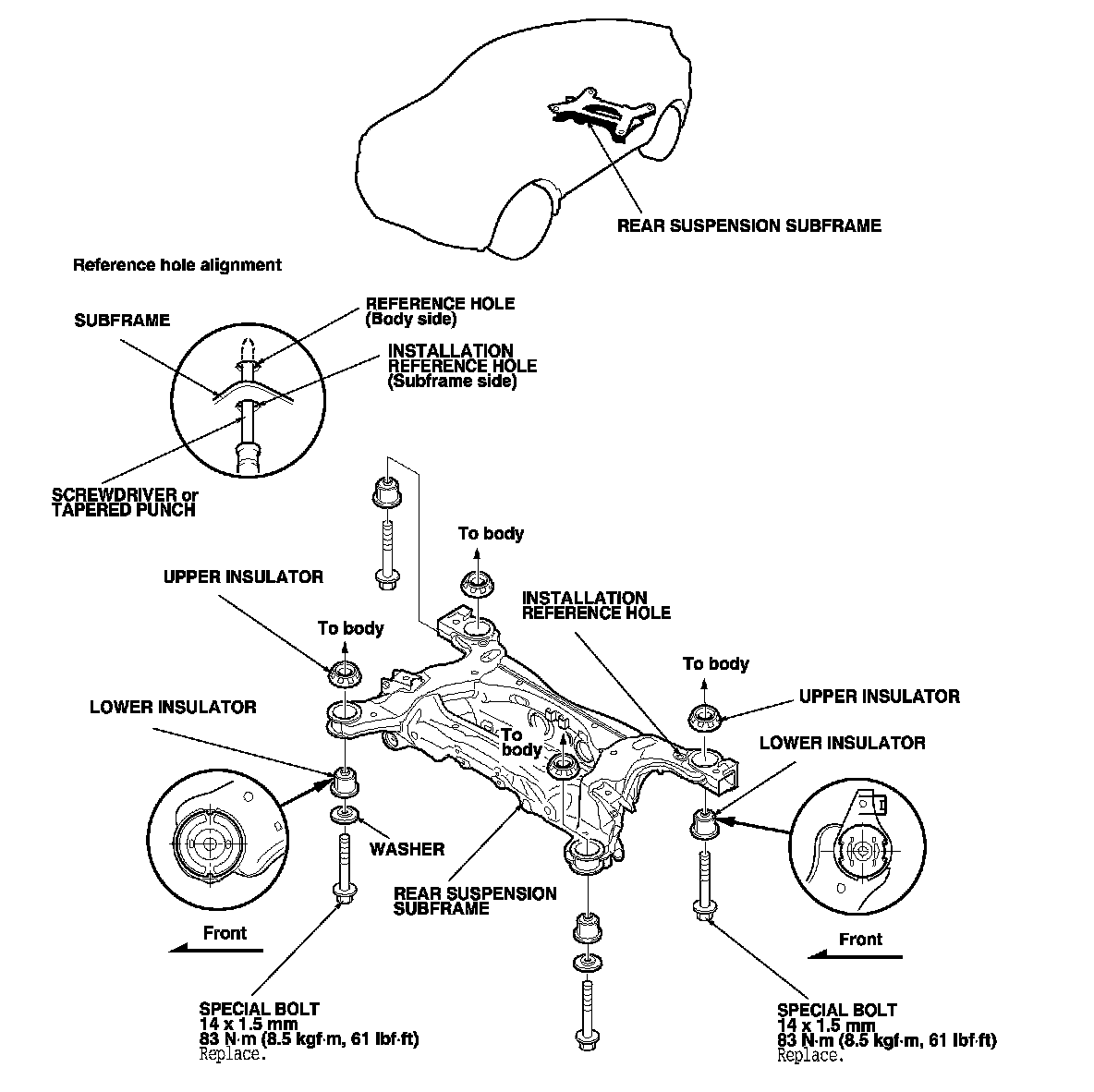

Rear Subframe Torque

NOTE:

- When installing, align both installation reference holes in the subframe with the reference holes in the body using a screwdriver or tapered punch as a guide.

- After removing the subframe mounting bolts, be sure to replace them with new ones.
