Seat Temperature Element: Testing and Inspection

Seat Heater Test

Driver's Seat

1. Remove the driver's seat. Front Seat Removal/Installation

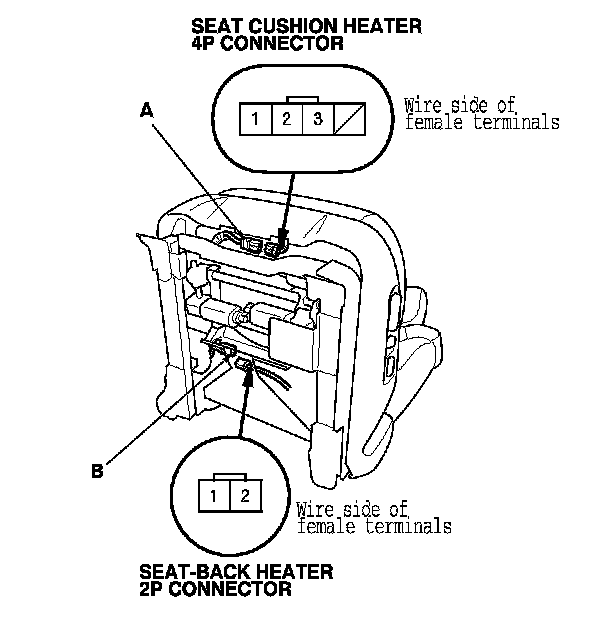

2. Disconnect the 4P connector (A) and 2P connector (B) from the seat heater.






Seat-back

3. Check for continuity between the seat-back heater 2P connector terminals No. 1 and No. 2. There should be continuity.

Seat Cushion

4. Check for continuity between the seat cushion heater 4P connector terminals No. 1 and No. 2, and the terminals No. 1 and No. 3. There should be continuity.

5. If the continuity is not as specified, replace the appropriate seat heater.

Front Passenger's Seat

1. Remove the front passenger's seat. Front Seat Removal/Installation

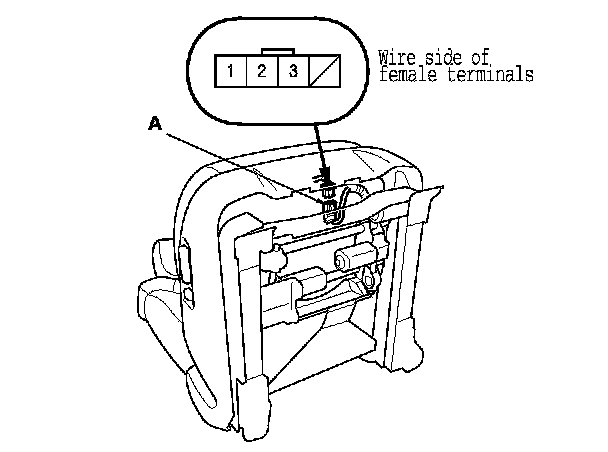

2. Disconnect the 4P connector (A) from the seat heater.

3. Check for continuity between the seat heater 4P connector terminals No. 1 and No. 3, and terminals No. 2 and No. 3. There should be continuity.

4. If the continuity is not as specified, replace the seat heater.






Second Row Seat

1. Remove the second row seat. Second Row Seat Removal/Installation

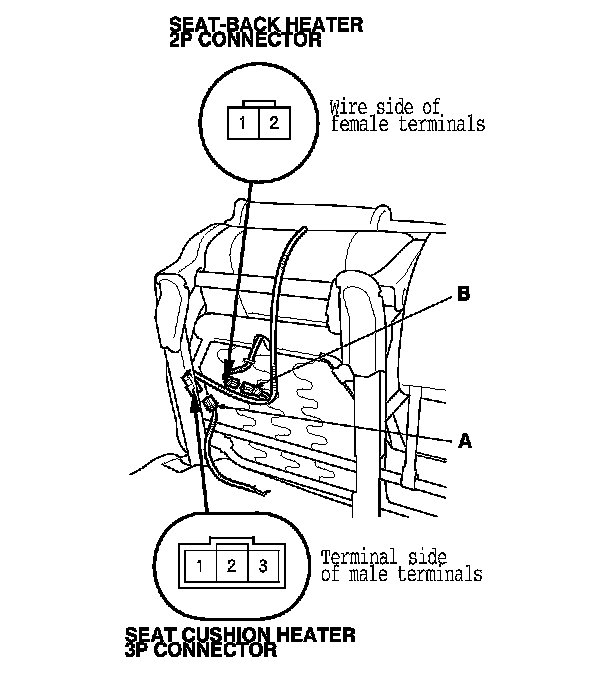

2. Disconnect the 3P connector (A) and 2P connector (B) from the seat heater.






Seat-back

3. Check for continuity between the seat-back heater 2P connector terminals No. 1 and No. 2. There should be continuity.

Seat Cushion

4. Check for continuity between the seat cushion heater 3P connector terminals No. 2 and No. 3. There should be continuity.

5. Connect the 2P connector, and check for continuity between the seat cushion heater 3P connector terminals No. 1 and No. 2. There should be continuity.

6. If the continuity is not as specified, replace the appropriate seat heater.
