Splash Shield Replacement

Splash Shield Replacement

NOTE:

- Put on gloves to protect your hands.

- Take care not to scratch the body.

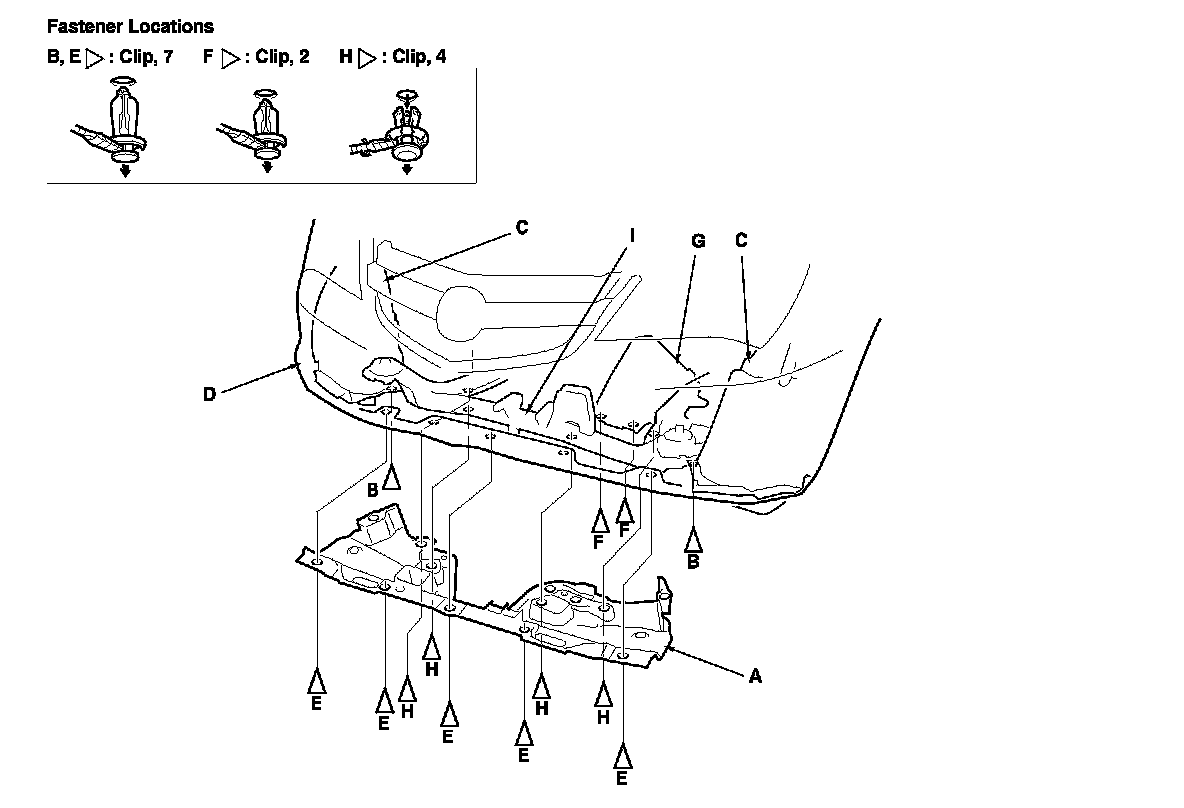

1. Remove the splash shield (A).
-1 Remove the clips (B) that secure the front inner fender (C) and splash shield.
-2 From under the front bumper (D), remove the clips (E).
-3 From under the body, remove the clips (F) that secure the front undercover (G) and splash shield, and remove the clips (H) that secure the splash shield on the front suspension subframe (I).
-4 Pull the splash shield out.

2. Install the splash shield in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.
