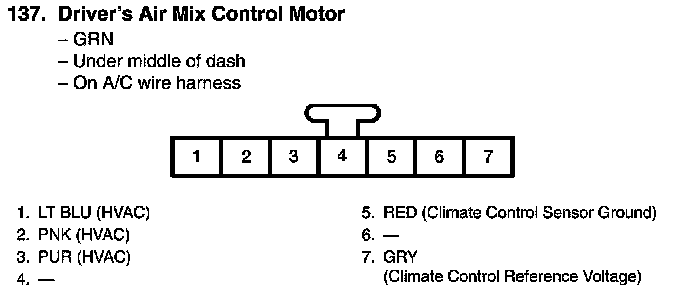

View 137 Driver's Air Mix Control Motor Connector View
View 137 Driver's Air Mix Control Motor Connector View
