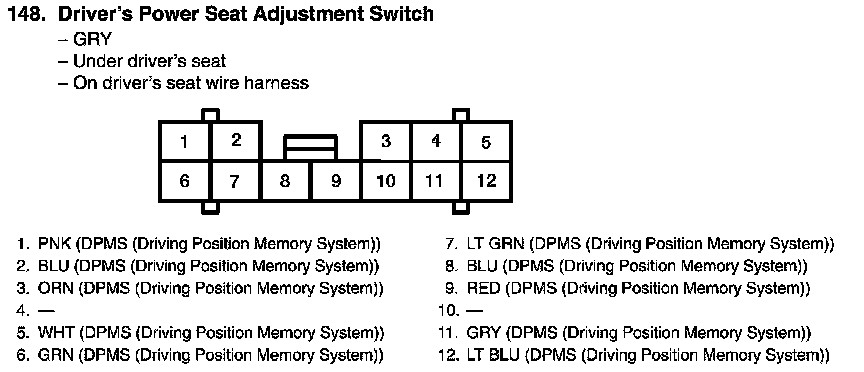

View 148 Driver's Power Seat Adjustment Switch Connector View
View 148 Driver's Power Seat Adjustment Switch Connector View
