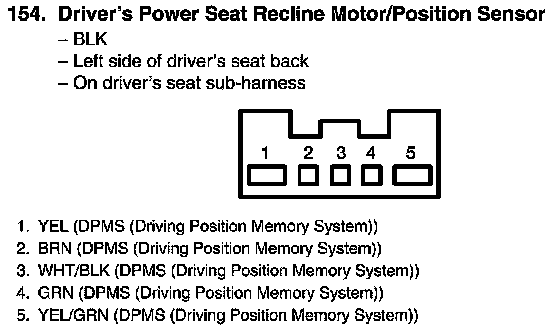

View 154 Driver's Power Seat Recline Motor/Position Sensor Connector View
View 154 Driver's Power Seat Recline Motor/Position Sensor Connector View
